J6413 Intel Router Development Sample: WiFi 6/WiFi 7 5G/4G Wireless

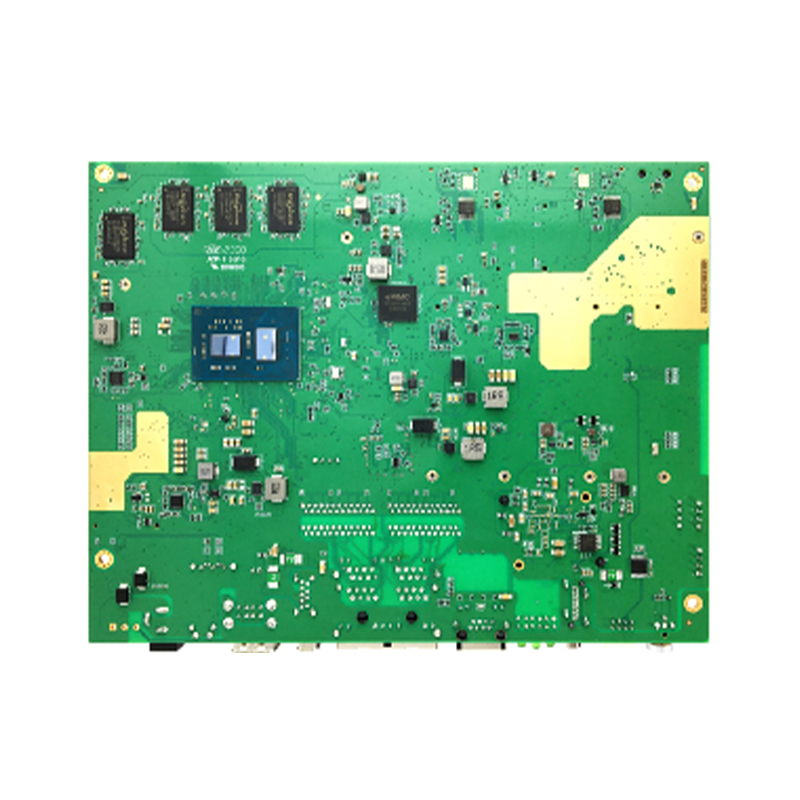

U6413-02: bare board model
1. Customization fees generally cover the cost of product R&D modifications and sample engineering and material costs. Customization fees can typically be refunded to the customer as a deduction from the final payment once a certain quantity is accumulated in the order.
2. Minimum order quantities vary depending on the product. Our company is generally flexible with quantities and will try our best to meet customer needs. The smaller the order quantity, the higher the unit price.
3. Various aspects of the product, such as hardware and software functions, casing, packaging, and accessories, can be provided according to customer requirements. We provide free technical support for CE/FCC/ROHS/CCC/BSMI/KC certifications, etc. The customer is responsible for the certification costs themselves.

Consult

Features Technical Indicators Overall Dimension

1. J6413 Intel® Celeron® Processor 1.8GHz (Turbo 3.0GHz)
2. Optional EMMC for big storage application
3. Optional 2x M.2 WiFi7/WiFi6 Module
4. Optional 2x 5G/4G module with SIM card slot x4 application

Specifications

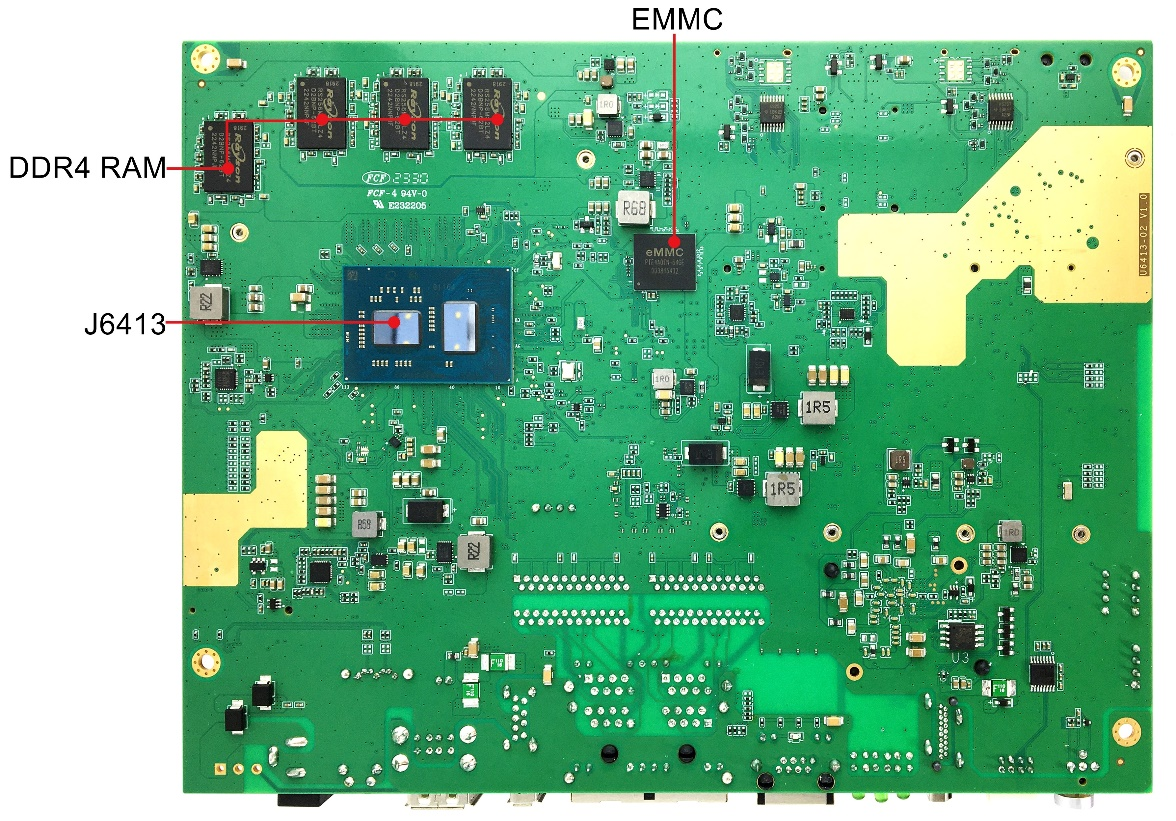

Chipset	CPU: J6413 Intel® Celeron® Processor AQC113-B1-C 10G NIC RTL8367S 5-Ports 100/1000Mbps Switch Chip
System Memory	Default DDR4 4GByte (Optional 16GByte)
EMMC	Optional 64Gbyte EMMC (Optional 128~256GByte)

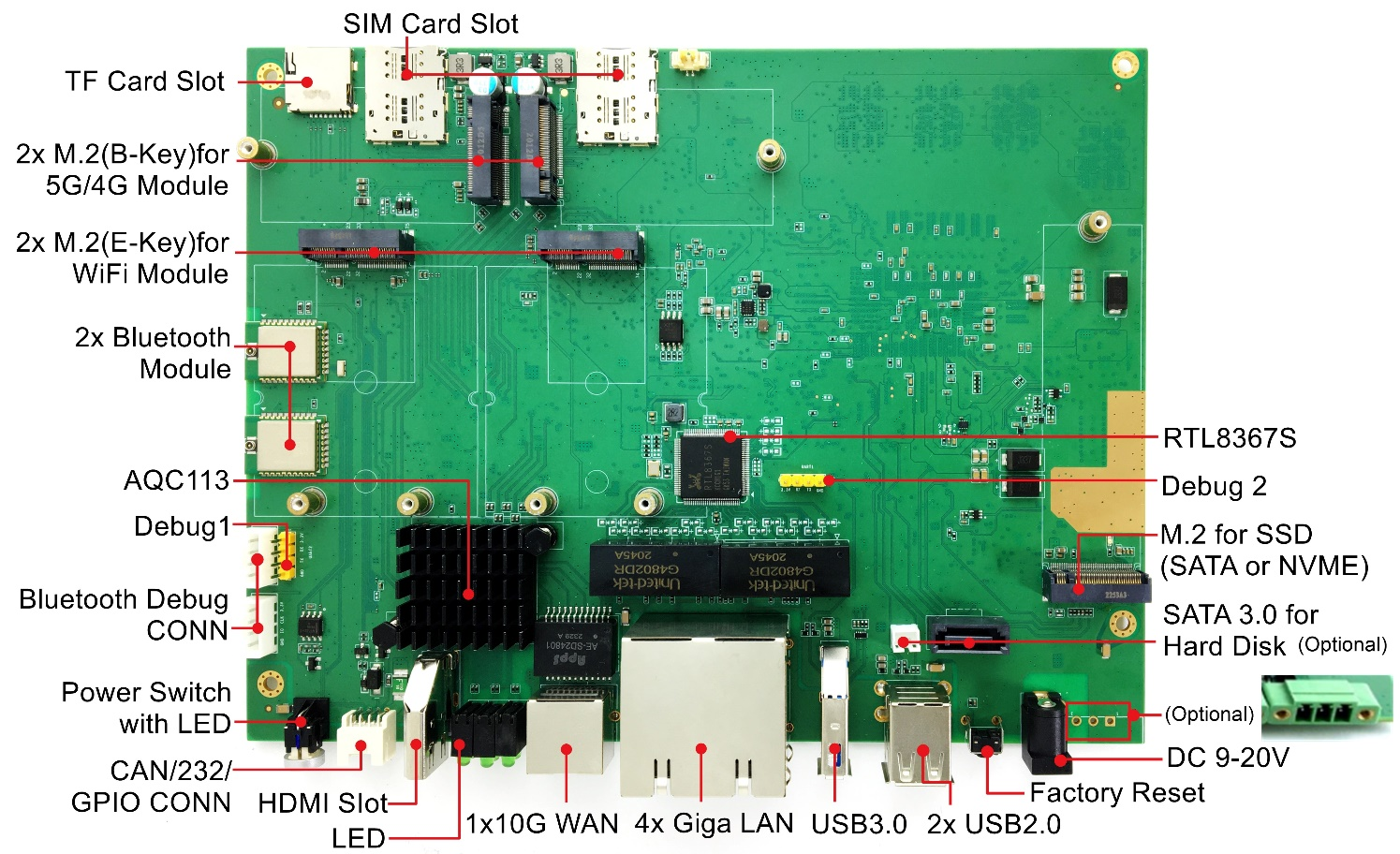

Expansion	2x 4G/5G Module with SIM card slot x4 1x USB3.0+2x USB2.0 TYPEA connector 1x TF Card Slot 1x HDMI Slot 2x M2 Slot for WiFi6/WiFi7 Module (Optional) 1x M2 slot for NVME or SATA3.0 SSD 1x SATA 3.0 (Optional) 1x CAN, 1x 232, 1x DI, 1x DO connector

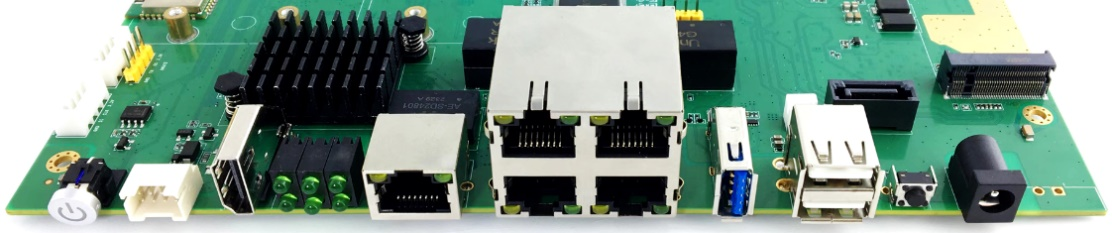

Wired Interface	4x Giga Port [4 x LAN] 1x 10G WAN Port
Button	1x Factory Restore Button (GPIO) 1x Power Switch with LED
DC Power	1x DC Jack Connector (Default 12V@2A)
Power Consumption	24W(Max),12V@2A without Expansion 45W(Max), 12V@4A in full range
Software	OpenWrt
Environmental	Temperature: Operating: 0ºC to 50ºC, Storage: -40ºC to 90ºC Humidity (non-condensing): Operating: 5% to 95%, Storage: Max. 95%
Baseboard	Dimensions: LWH =21016550mm (±2mm)

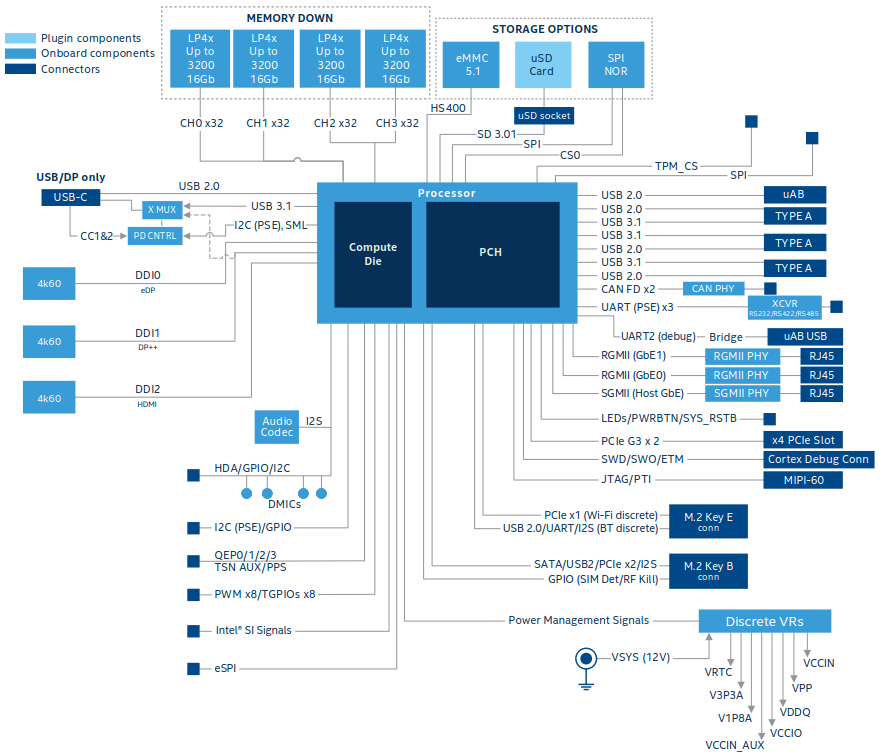

Typical Application Diagram of Chipset

Board Block Diagram

Customization Options

UniElec have engaged in providing global customers with professional ODM/OEM service of customized stable and cost-effective electronic products. We can customize total production for the customer including Chassis, Hardware, Software and Package as below customization options for this product. Contact us at sales@unielecinc.com for more detailed info.

Name	Customization Comments	UniElec Customization
Memory	Change to 8~16GByte DDR4	Supported
EMMC	Change to 8~256GByte EMMC	Supported
WiFi6/WiFi7 Module	Select the right M2 WiFi6/7 module for your application	Supported
5G/4G Module	Select the right M2 5G/4G module for your application	Supported
Case	Select the different case material for your application	Supported
CPU	Select the different CPU chip for your application	Supported

Ordering Information

Models	Comments
U6413-02	4GByte DDR4 RAM and 64GByte EMMC
