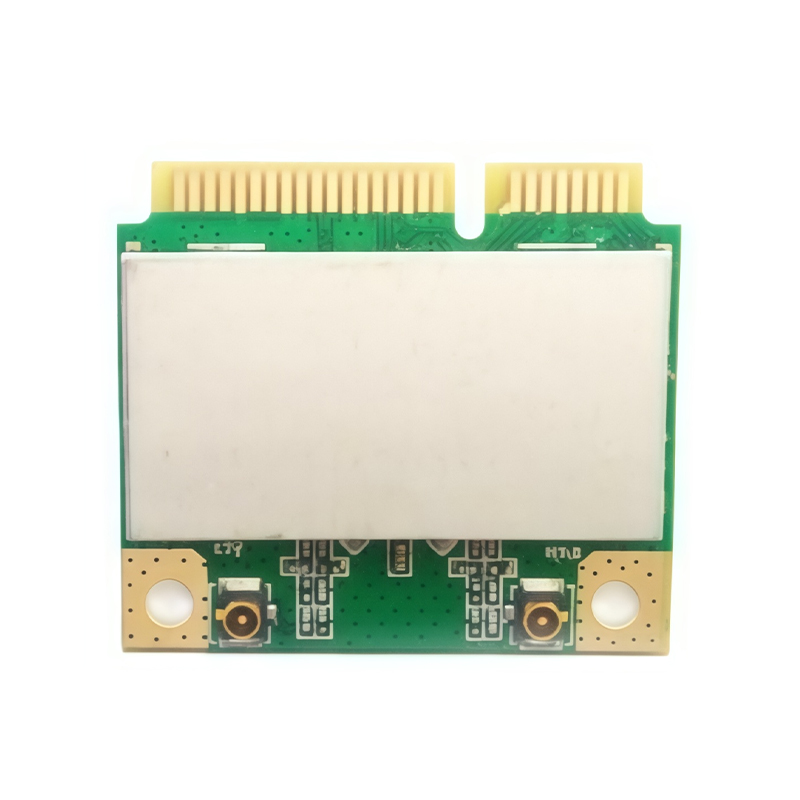

MT7603E MTK MiniPCIE 11b/g/n 300Mbps Dual-line 2.4G WiFi Module

U7603E-H1
1. Customization fees generally cover the cost of product R&D modifications and sample engineering and material costs. Customization fees can typically be refunded to the customer as a deduction from the final payment once a certain quantity is accumulated in the order.
2. Minimum order quantities vary depending on the product. Our company is generally flexible with quantities and will try our best to meet customer needs. The smaller the order quantity, the higher the unit price.
3. Various aspects of the product, such as hardware and software functions, casing, packaging, and accessories, can be provided according to customer requirements. We provide free technical support for CE/FCC/ROHS/CCC/BSMI/KC certifications, etc. The customer is responsible for the certification costs themselves.

Consult

Features Technical Indicators Overall Dimension

1. Embedded high-performance 32-bit RISC microprocessor
2. 2T2R mode with support of 300Mbps PHY rate
3. Low Cost

Specifications

Chipset	CPU: MTK MT7603E Internal PA/LNA/SWITCH
Expansion	Normal Gold Finger MINIPCIE
Wireless	2.4GHz 2T2R 300Mbps 11n, @19dBm (Max)
DC Power	1x DC MINIPCIE Connector: 3.3V@1A
Power Consumption	3 Watt (Max)
Software	OpenWRT or MTK Linux SDK Driver and Tool Chain
Environmental	Temperature: Operating: 0ºC to 55 ºC, Storage: -20ºC to 90ºC Humidity (non-condensing): Operating: 5% to 95%, Storage: Max. 90%
Dimensions	LWH = 30273.37mm (±0.2mm)

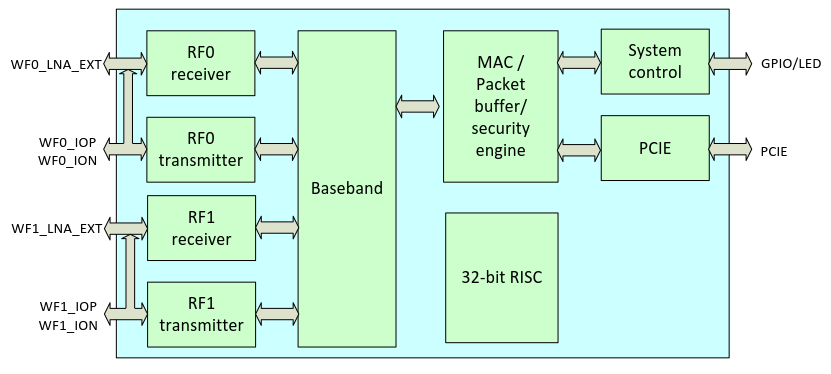

MT7603E Block Diagram

Customization Options

UniElec have engaged in providing global customers with professional ODM/OEM service of customized stable and cost-effective electronic products. We can customize total production for the customer including Chassis, Hardware, Software and Package as below customization options for this product. Contact us at sales@unielecinc.com for more detailed info.

Name	Customization Comments	UniElec Customization
RF TX Power	Change TX POWER as the requirement from 22-27dBm	Supported

Ordering Information

Models	Comments
U7603E-H1	WIFI 2.4G 2x2 11N
