MTK MT7628 Router Development Sample: WIFI LTE 4G Wireless 100Mbps Router with OpenWrt

MTK MT7628 Router Development Sample: WIFI LTE 4G Wireless 100Mbps Router with OpenWrt

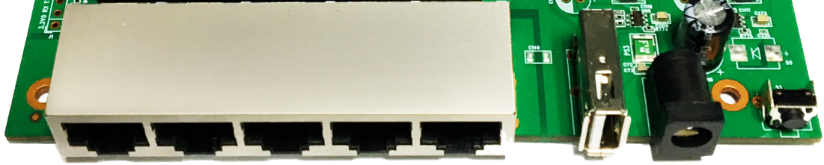

U7628-01 PCBA: bare board model

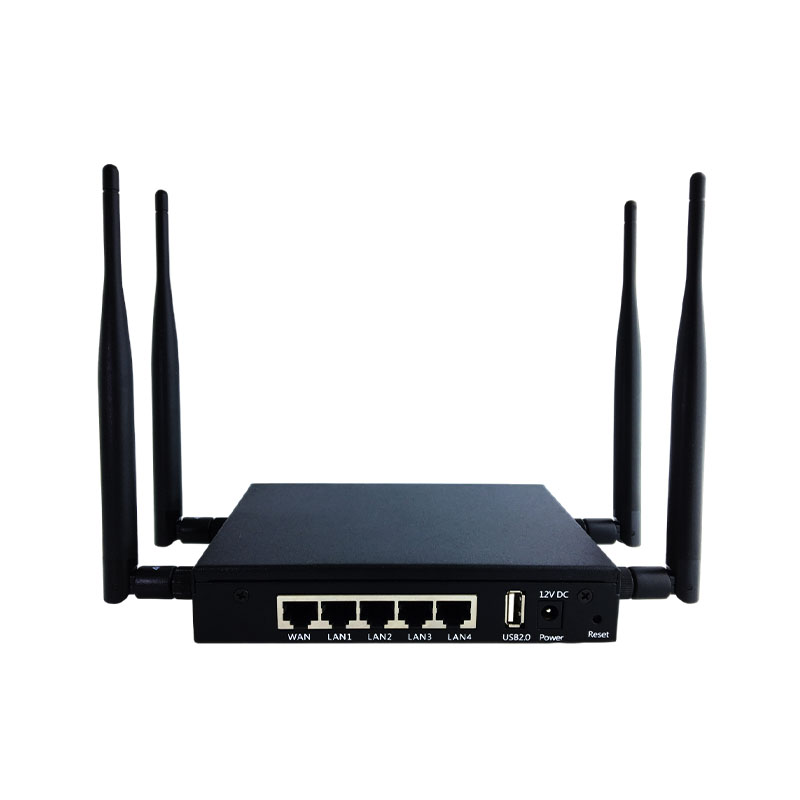

U7628-01: Complete device model (including casing, antenna, and power adapter; excluding 4G/5G module).
1. Customization fees generally cover the cost of product R&D modifications and sample engineering and material costs. Customization fees can typically be refunded to the customer as a deduction from the final payment once a certain quantity is accumulated in the order.
2. Minimum order quantities vary depending on the product. Our company is generally flexible with quantities and will try our best to meet customer needs. The smaller the order quantity, the higher the unit price.
3. Various aspects of the product, such as hardware and software functions, casing, packaging, and accessories, can be provided according to customer requirements. We provide free technical support for CE/FCC/ROHS/CCC/BSMI/KC certifications, etc. The customer is responsible for the certification costs themselves.

Consult

Features Technical Indicators Overall Dimension

1. MIPS24KEc (575/580 MHz) with 64 KB I-Cache and 32 KB D-Cache
2. Optional LTE application
3. Industry iron case with removable SMA antennas
4. Low Cost

Specifications

Chipset	CPU: MTK MT7628
System Memory	Default DDR2 128Mbyte (Optional 64/256 Mbyte)
Nor Flash	Default 16Mbyte (Optional 8Mbyte)
Expansion	1x 4G/3G Module with a SIM card 1x USB TYPEA connector for power only 1x TF Card Slot
Wireless	2.4G 2T2R 300Mbps, B mode@19dBm(Max)
Wired Interface	5x 100Mbps 1WAN+4LAN(Auto MDI-X)
Reset Button	1x Factory Restore Button (GPIO)
DC Power	1x DC Jack Connector (Default 12V@0.5A)
Power Consumption	6W(Max), 12V@0.5A without Expansion 12W(Max), 12V@1A in full range
Software	MTK OpenWrt which includes Uboot, Kernel, Driver and Tool Chain Normal OpenWrt
Environmental	Temperature: Operating: 0ºC to 50ºC, Storage: -40ºC to 90ºC Humidity (non-condensing): Operating: 5% to 95%, Storage: Max. 95%
Case	Material: Iron, Dimensions: 155x111x30mm

MT7628 Block Diagram

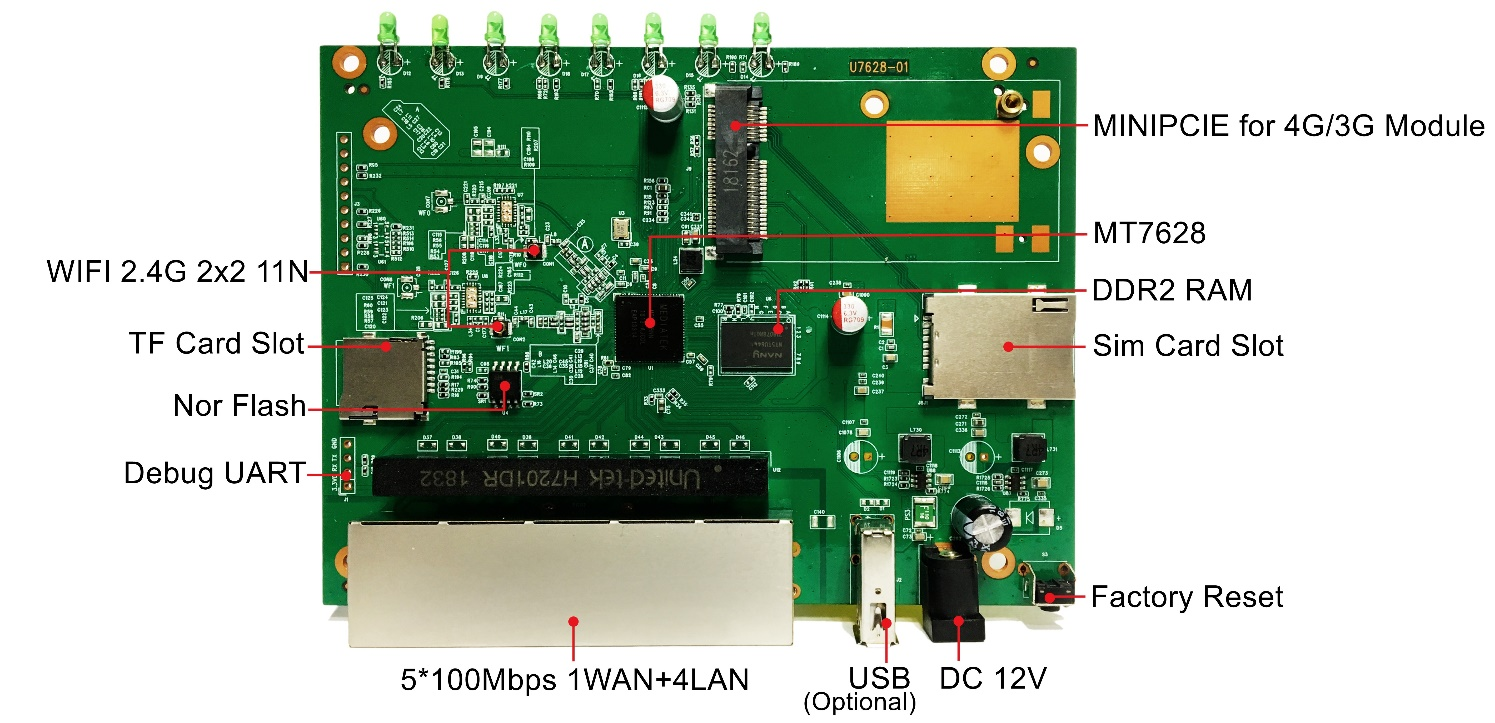

Board Block Diagram

Dimensions

Customization Options

UniElec have engaged in providing global customers with professional ODM/OEM service of customized stable and cost-effective electronic products. We can customize total production for the customer including Chassis, Hardware, Software and Package as below customization options for this product. Contact us at sales@unielecinc.com for more detailed info.

Name	Customization Comments	UniElec Customization
Memory	Change to 64/256 Mbyte DDR2	Supported
Nor Flash	Change to 8Mbyte	Supported
LTE/3G Module	Select the right MiniPCIE LTE/3G module for your application	Supported
Case	Select the different case material for your application	Supported

Ordering Information

Models	Comments
U7628-01	16Mbyte Nor Flash and 128Mbyte DDR2 RAM
