IPQ5018 QUALCOMM AX3000 Wireless Router, WiFi 6 Gigabit, Suitable for Large Homes, Dual-Band High-Speed and Stable

IPQ5018 QUALCOMM AX3000 Wireless Router, WiFi 6 Gigabit, Suitable for Large Homes, Dual-Band High-Speed and Stable

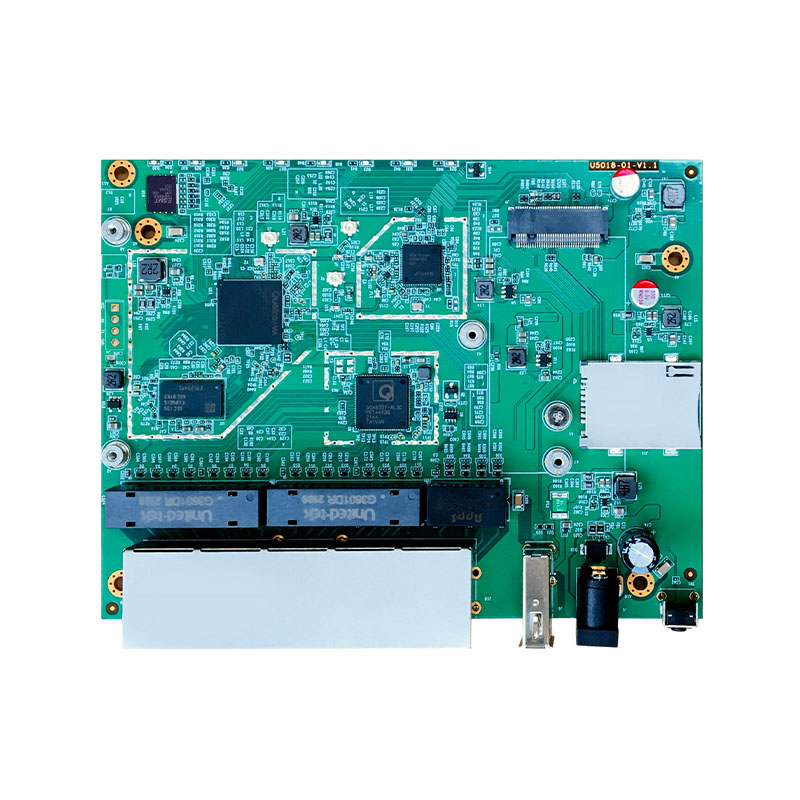

U5018-01 PCBA: bare board model

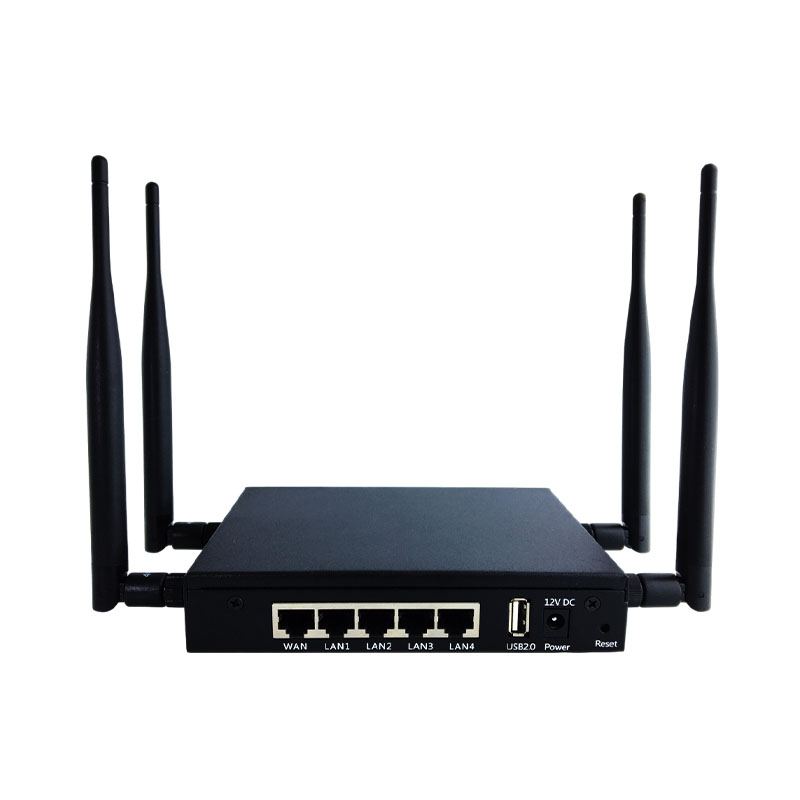

U5018-01: Complete device model (including casing, antenna, and power adapter; excluding 4G/5G module).
1. Customization fees generally cover the cost of product R&D modifications and sample engineering and material costs. Customization fees can typically be refunded to the customer as a deduction from the final payment once a certain quantity is accumulated in the order.
2. Minimum order quantities vary depending on the product. Our company is generally flexible with quantities and will try our best to meet customer needs. The smaller the order quantity, the higher the unit price.
3. Various aspects of the product, such as hardware and software functions, casing, packaging, and accessories, can be provided according to customer requirements. We provide free technical support for CE/FCC/ROHS/CCC/BSMI/KC certifications, etc. The customer is responsible for the certification costs themselves.

Consult

Features Technical Indicators Overall Dimension

1. Dual-core ARM Cortex-A53 at 1.0 GHz
2. Bluetooth. Compliant with BT 5.1 to support BR/EDR and BLE dual mode
3. Low Cost
4. Optional Support for EMMC/SPI NAND

Specifications

Chipset	CPU: Qualcomm IPQ5018 and Qualcomm QCN6102 and QCA8337N
System Memory	Default DDR3 512Mbyte (Optional 256Mbyte/1Gbyte)
EMMC/NAND Flash	Default 128Mbyte NAND (Optional 256Mbyte) Optional EMMC(8~128Gbyte)
Expansion	1x 4G/5G Module with a SIM card 1x USB TYPEA connector for power only
Wireless	2x2 MU-MIMO 802.11b/g/n/ac/ax WiFi 6 2.4GHz 2T2R 576Mbps, B mode@22dBm(Max) 5.8GHz 2T2R 2.4Gbps, A mode@19dBm(Max)
Wired Interface	5x Gigabit 1WAN+4LAN
Reset Button	1x Factory Restore Button (GPIO)
DC Power	1x DC Jack Connector (Default 12V@1A)
Power Consumption	9.5 W(Max),12V@1A without Expansion 24W(Max), 12V@2A in full range
Software	Qualcomm QSDK which includes Uboot, Kernel, Driver and Tool Chain Latest Openwrt (In Development)
Environmental	Temperature: Operating: 0ºC to 50ºC, Storage: -40ºC to 90ºC Humidity (non-condensing): Operating: 5% to 95%, Storage: Max. 95%
Case	Material: Iron, Dimensions: 155x111x30mm

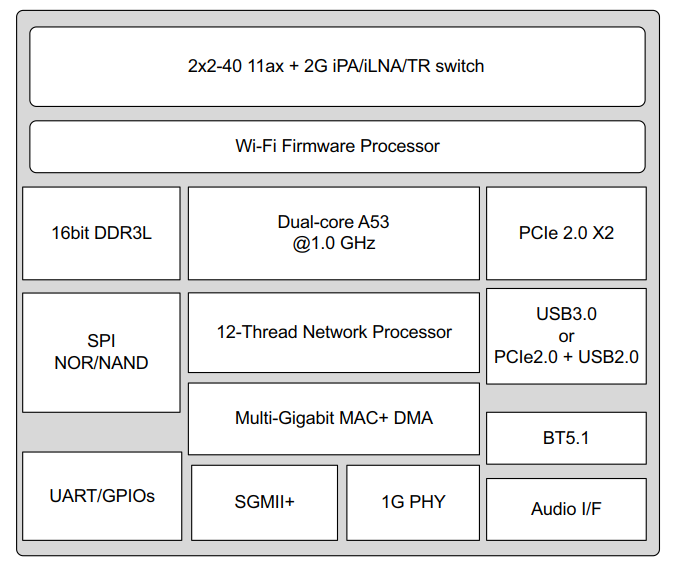

IPQ5018 Block Diagram

Board Block Diagram

Dimensions

Customization Options

UniElec have engaged in providing global customers with professional ODM/OEM service of customized stable and cost-effective electronic products. We can customize total production for the customer including Chassis, Hardware, Software and Package as below customization options for this product. Contact us at sales@unielecinc.com for more detailed info.

Name	Customization Comments	UniElec Customization
Memory	Change to 256Mbyte/1Gbyte DDR3	Supported
NAND Flash/EMMC	Change to 256Mbyte NAND/8~128Gbyte EMMC	Supported
4G/5G Module	Select the right M2 4G/5G module for your application	Supported
Case	Select the different case material for your application	Supported

Ordering Information

Models	Comments
U5018-01	128Mbyte NAND Flash and 512Mbyte DDR3 RAM
