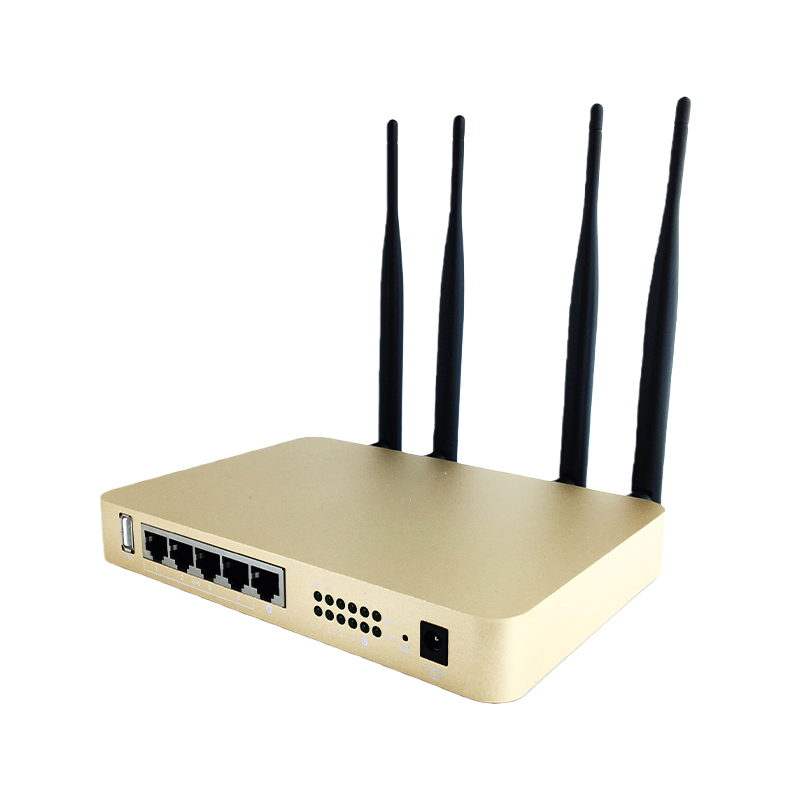

MTK MT7986 Router Development Sample: Gigabit Port WiFi 6 5G/4G Wireless AX6000 OpenWrt

MTK MT7986 Router Development Sample: Gigabit Port WiFi 6 5G/4G Wireless AX6000 OpenWrt

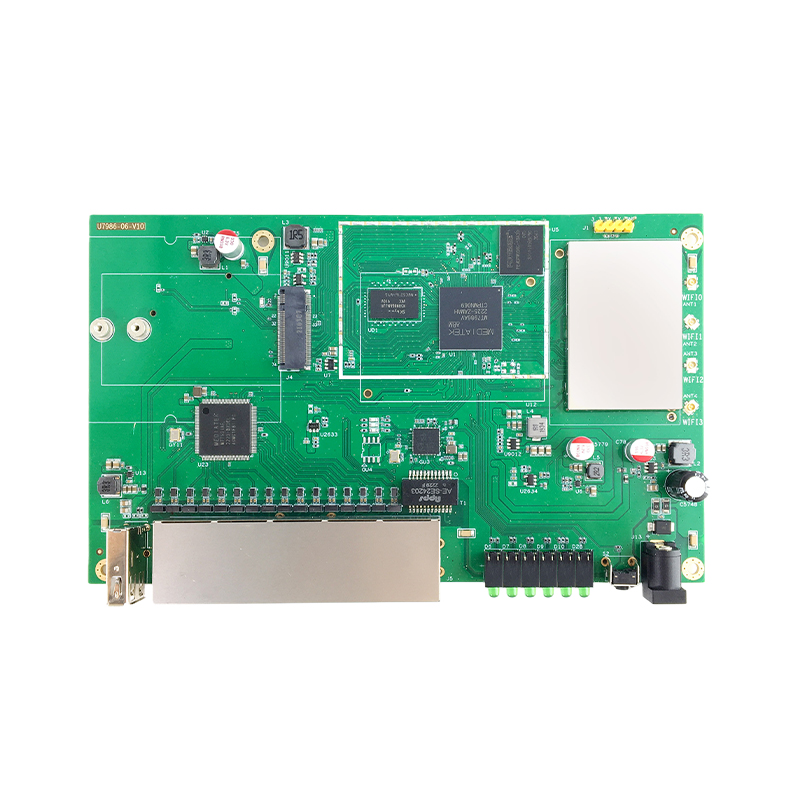

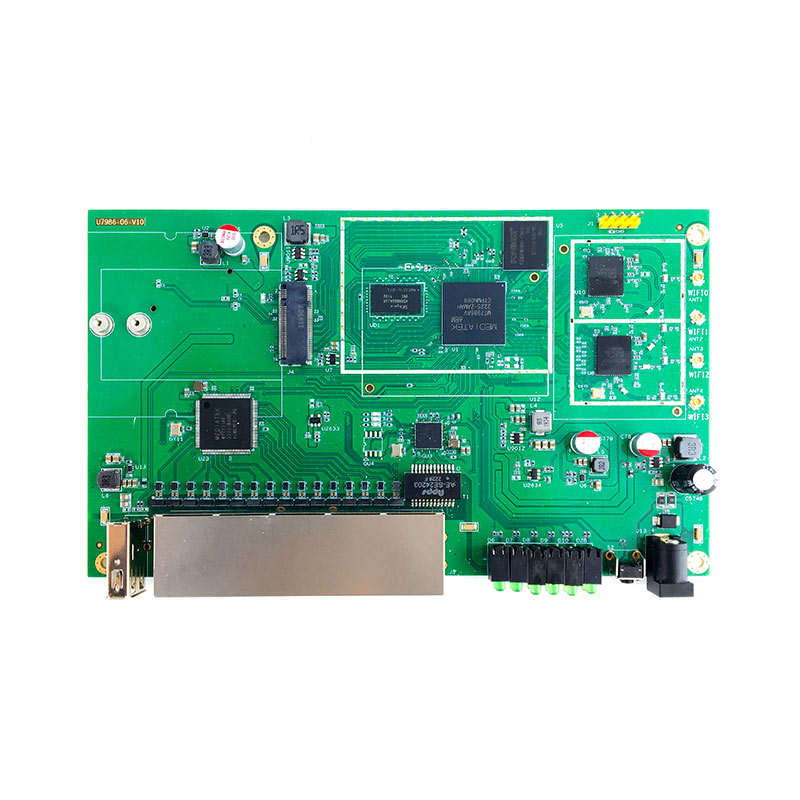

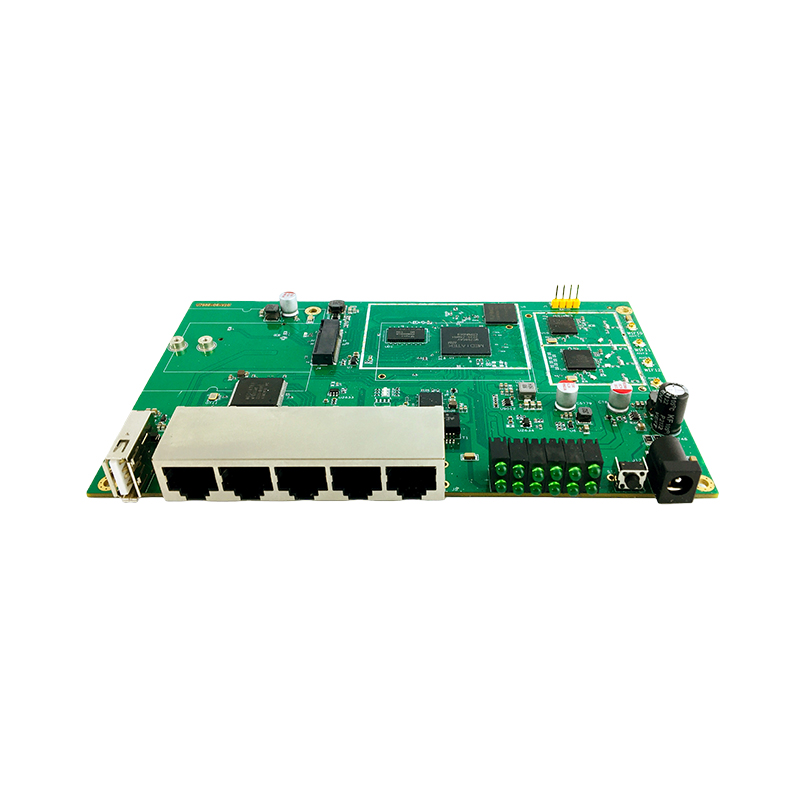

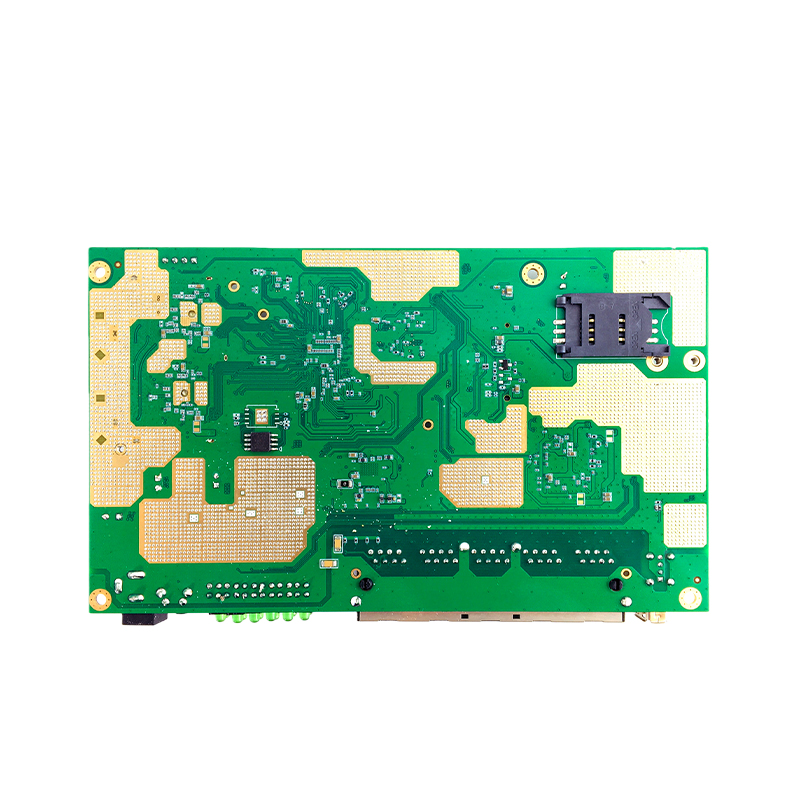

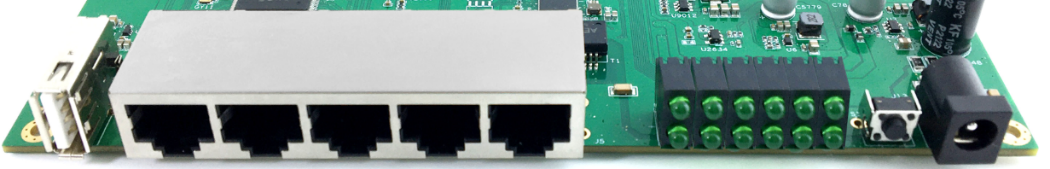

U7986-06 PCBA: bare board model

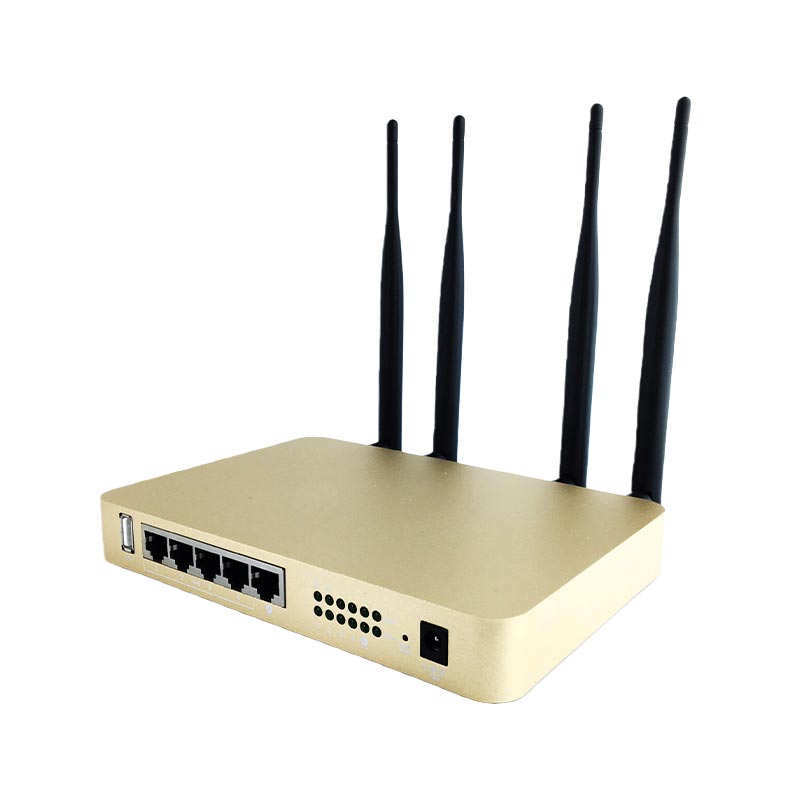

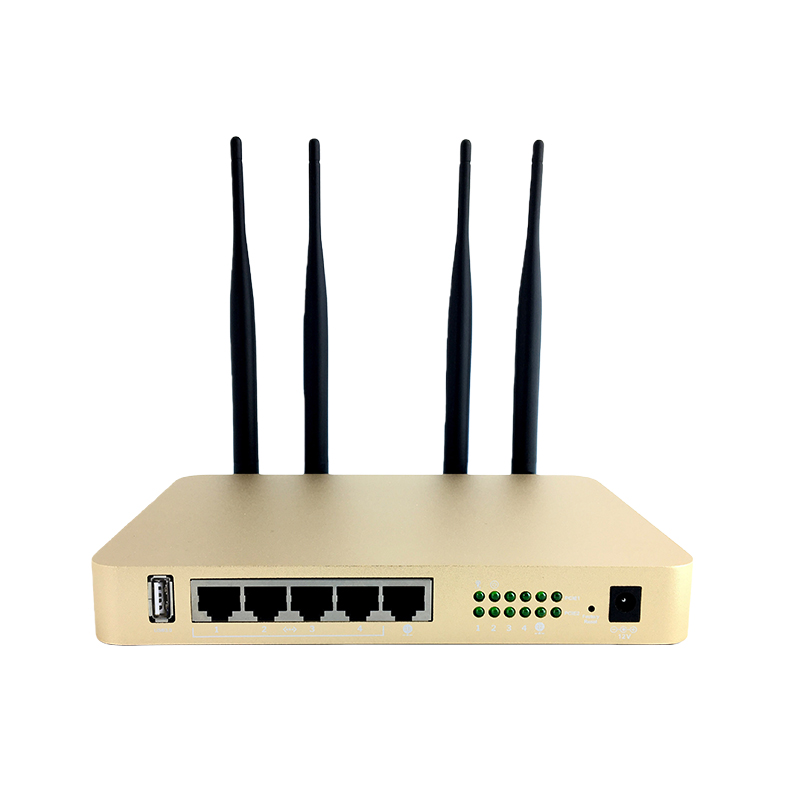

U7986-06: Complete device model (including casing, antenna, and power adapter, excluding 4G/5G module).
1. Customization fees generally cover the cost of product R&D modifications and sample engineering and material costs. Customization fees can typically be refunded to the customer as a deduction from the final payment once a certain quantity is accumulated in the order.
2. Minimum order quantities vary depending on the product. Our company is generally flexible with quantities and will try our best to meet customer needs. The smaller the order quantity, the higher the unit price.
3. Various aspects of the product, such as hardware and software functions, casing, packaging, and accessories, can be provided according to customer requirements. We provide free technical support for CE/FCC/ROHS/CCC/BSMI/KC certifications, etc. The customer is responsible for the certification costs themselves.

Consult

Features Technical Indicators Overall Dimension

1.Embedded Quad-core ARM® Cortex-A53 MPCore operating at 2.0GHz
2.WiFi6 AX6000 platform
3.Optional SPl NAND for low cost and EMMC for big storage application
4.Optional 5G /LTE application
5.Aluminum Alloy case with different color support and removable SM Aantennas

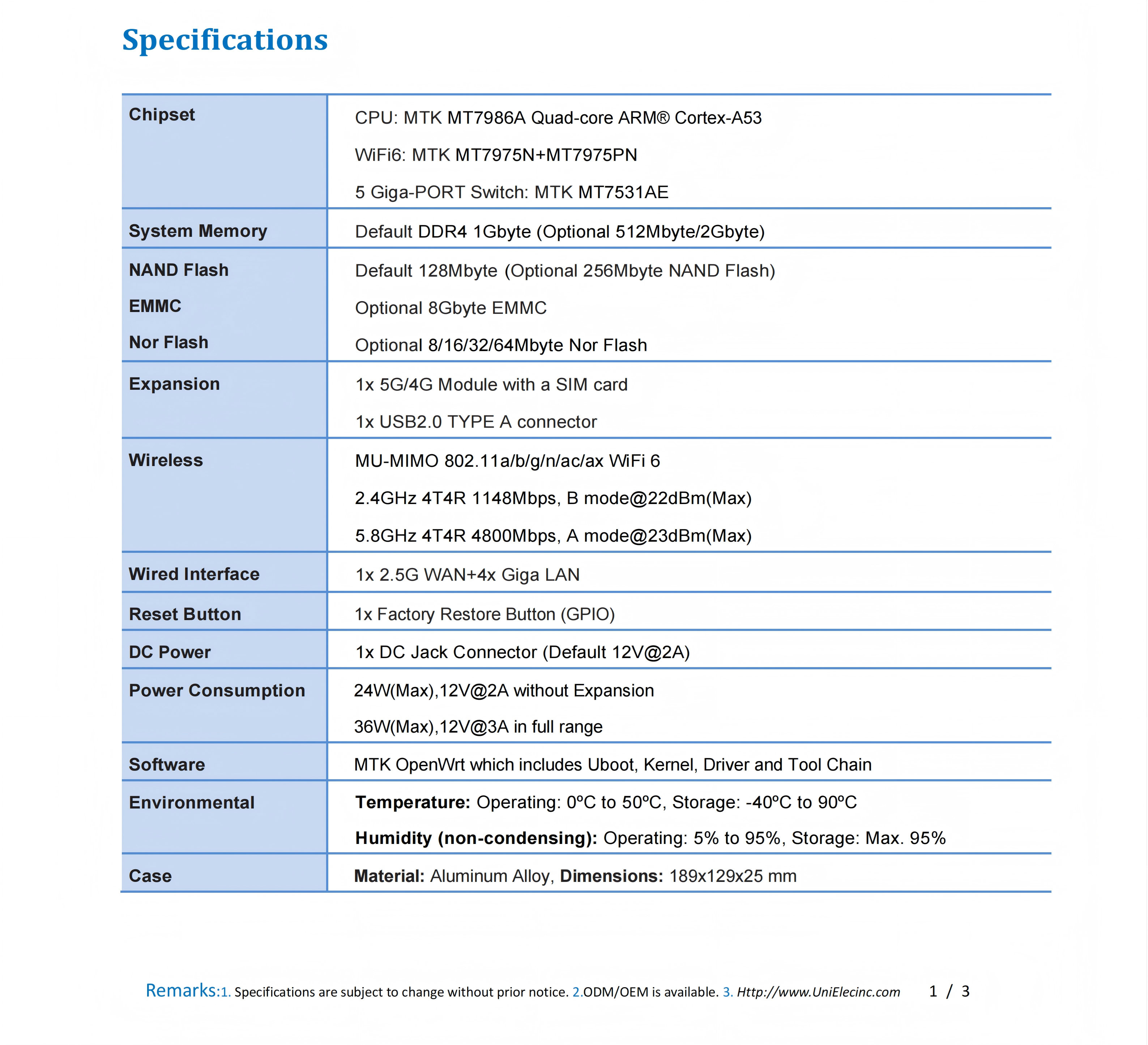

Specifications

Chipset	CPU: MTK MT7986A Quad-core ARM® Cortex-A53 @2GHZ WiFi6: MTK MT7975N+MT7975PN 5 Giga-PORT Switch: MTK MT7531AE
System Memory	Default DDR4 1Gbyte (Optional 512Mbyte/2Gbyte)
NAND Flash EMMC Nor Flash	Default 128Mbyte (Optional 256Mbyte NAND Flash) Optional 8Gbyte EMMC Optional 8/16/32/64Mbyte Nor Flash
Expansion	1x 5G/4G Module with a SIM card 1x USB2.0 TYPE A connector
Wireless	MU-MIMO 802.11a/b/g/n/ac/ax WiFi 6 2.4GHz 4T4R 1148Mbps, B mode@22dBm(Max) 5.8GHz 4T4R 4800Mbps, A mode@23dBm(Max)
Wired Interface	1x 2.5G WAN+4x Giga LAN
Reset Button	1x Factory Restore Button (GPIO)
DC Power	1x DC Jack Connector (Default 12V@2A)
Power Consumption	24W(Max),12V@2A without Expansion 36W(Max),12V@3A in full range
Software	MTK OpenWrt which includes Uboot, Kernel, Driver and Tool Chain
Environmental	Temperature: Operating: 0ºC to 50ºC, Storage: -40ºC to 90ºC Humidity (non-condensing): Operating: 5% to 95%, Storage: Max. 95%
Case	Material: Aluminum Alloy, Dimensions: 189x129x25 mm

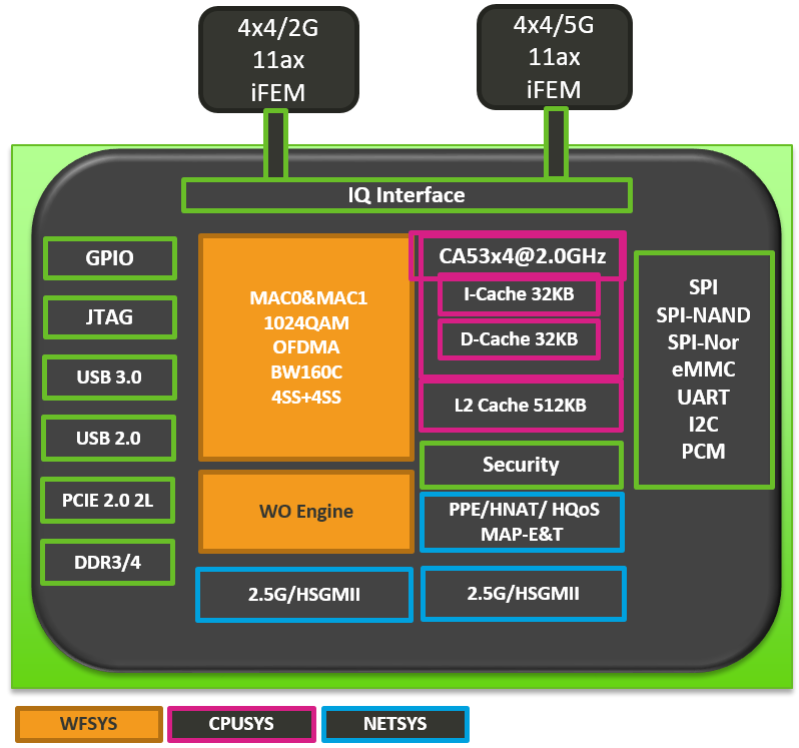

MT7986A Overview and Block Diagram

MT7986A is a highly integrated wireless network router system-on-chip used for high wireless performance, home entertainment, and home automation and so on.

Applications:

Internet Service Router
Wireless Router
Wireless Repeater
Home Security Gateway
Home Automation
NAS Devices

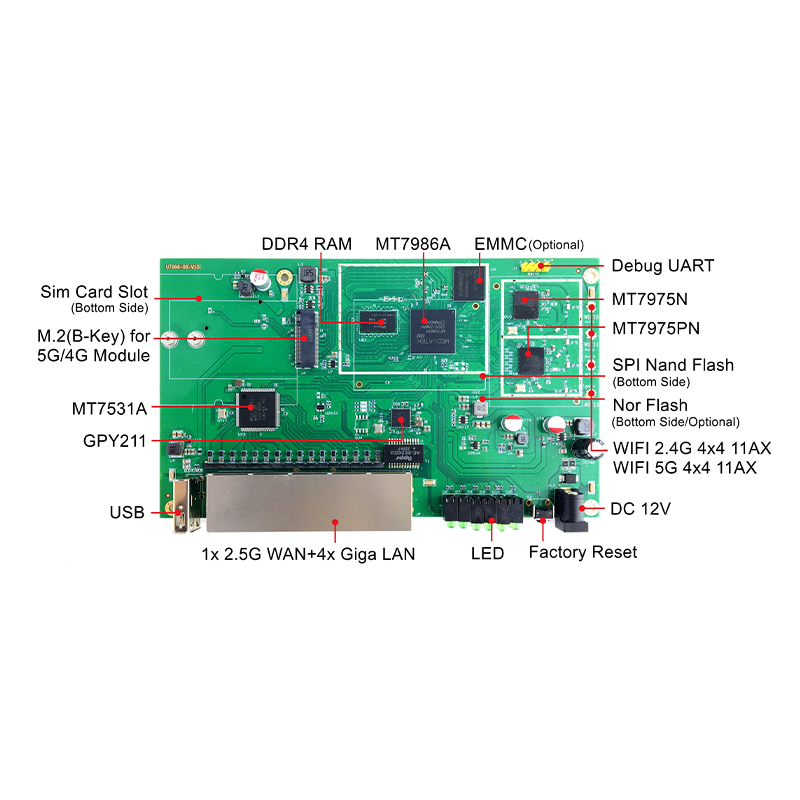

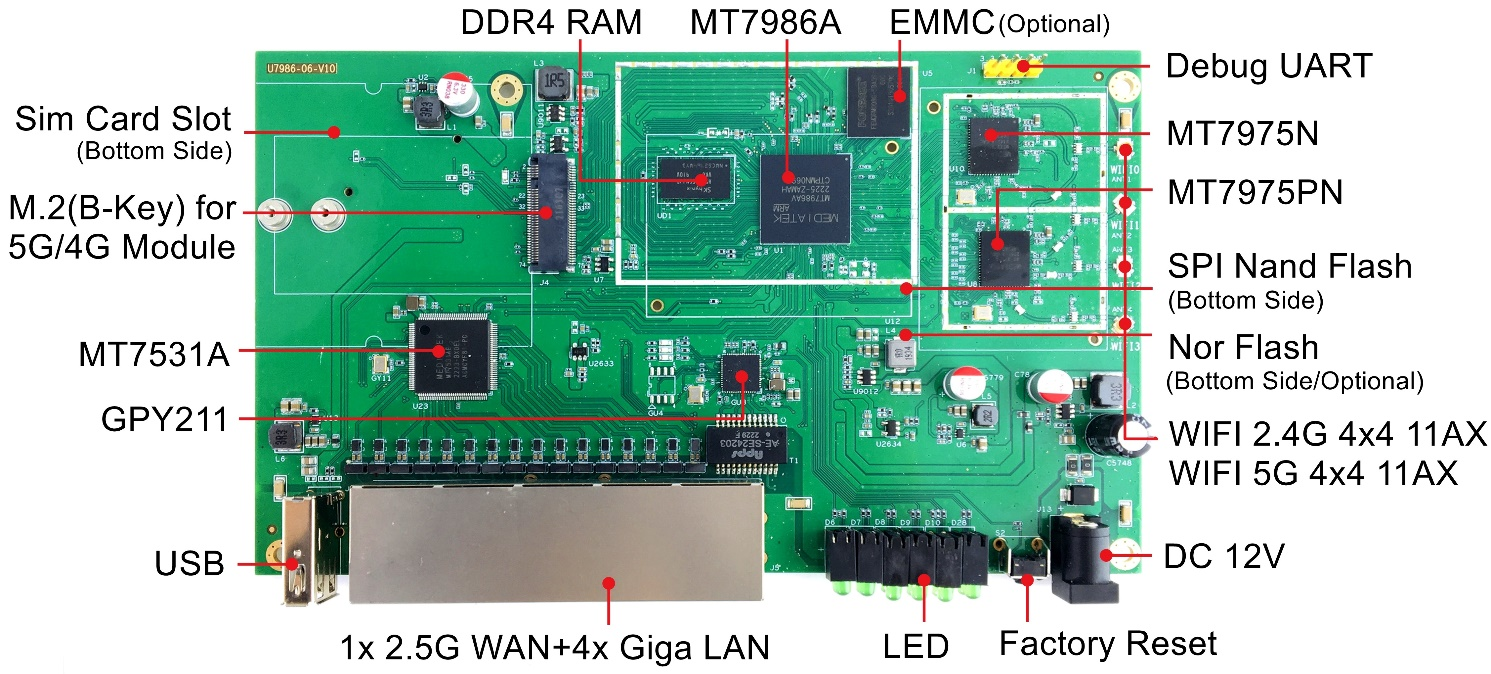

Board Block Diagram

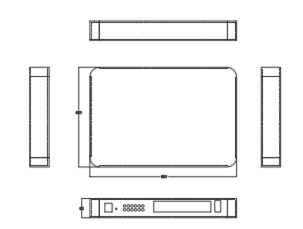

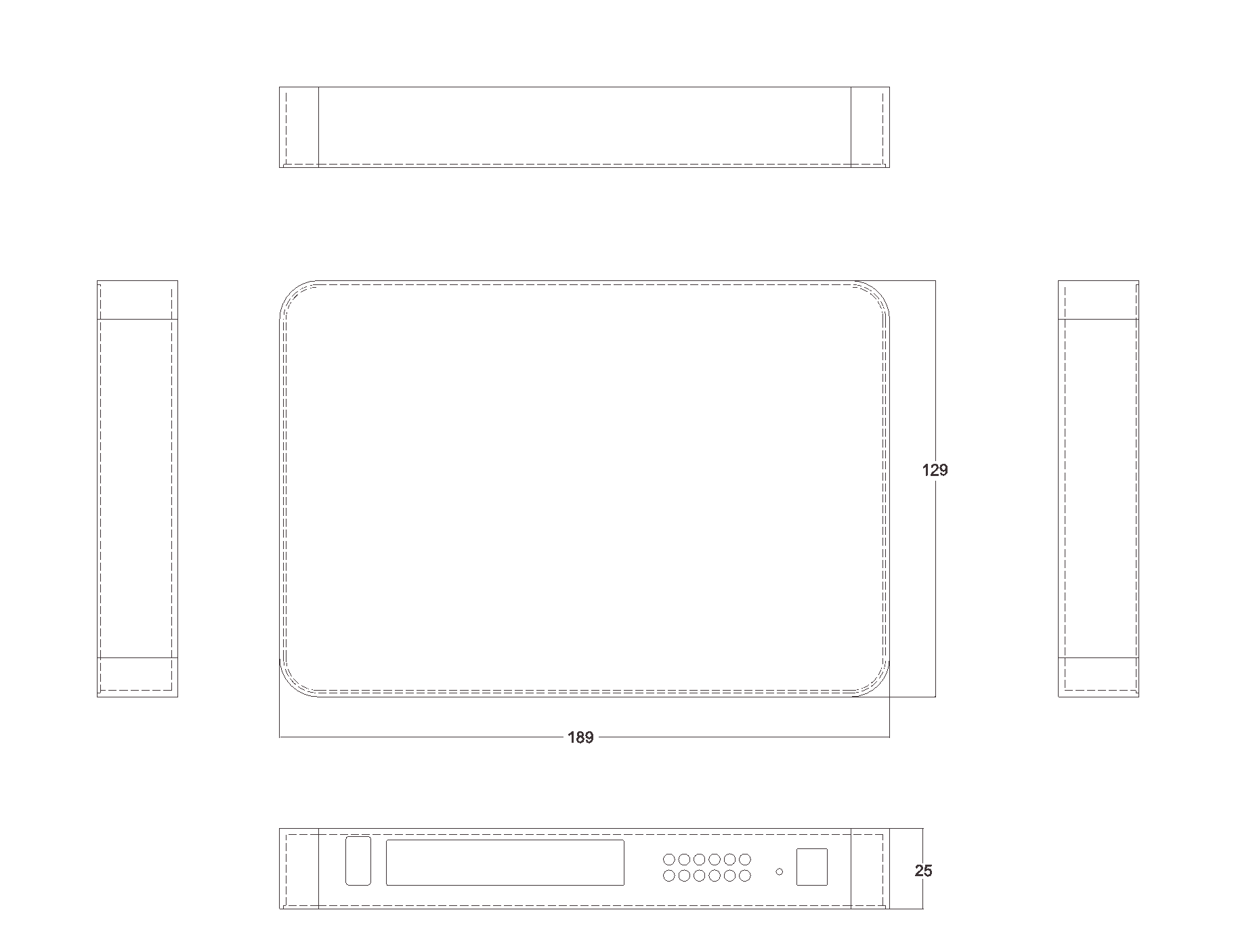

Dimensions

Customization Options

UniElec have engaged in providing global customers with professional ODM/OEM service of customized stable and cost-effective electronic products. We can customize total production for the customer including Chassis, Hardware, Software and Package as below customization options for this product. Contact us at sales@unielecinc.com for more detailed info.

Name	Customization Comments	UniElec Customization
Memory	Change to 512Mbyte/2Gbyte DDR4 Change to 256Mbyte/512Mbyte DDR3	Supported
NAND Flash	Change to 256Mbyte NAND Flash	Supported
EMMC	Change to 8Gbyte EMMC	Supported
Nor Flash	Change to 8/16/32/64Mbyte	Supported
5G/4G Module	Select the right M2 5G/4G module for your application	Supported
Case	Select the different case material for your application Select Aluminum Alloy case with different color	Supported

Ordering Information

Models	Comments
U7986-06	128Mbyte NAND Flash and 1Gbyte DDR4 RAM
