MT7621 Router Custom Development Template: Dual-Band WiFi 4G Gigabit Router with OpenWrt

MT7621 Router Custom Development Template: Dual-Band WiFi 4G Gigabit Router with OpenWrt

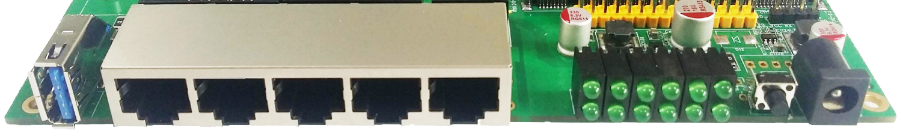

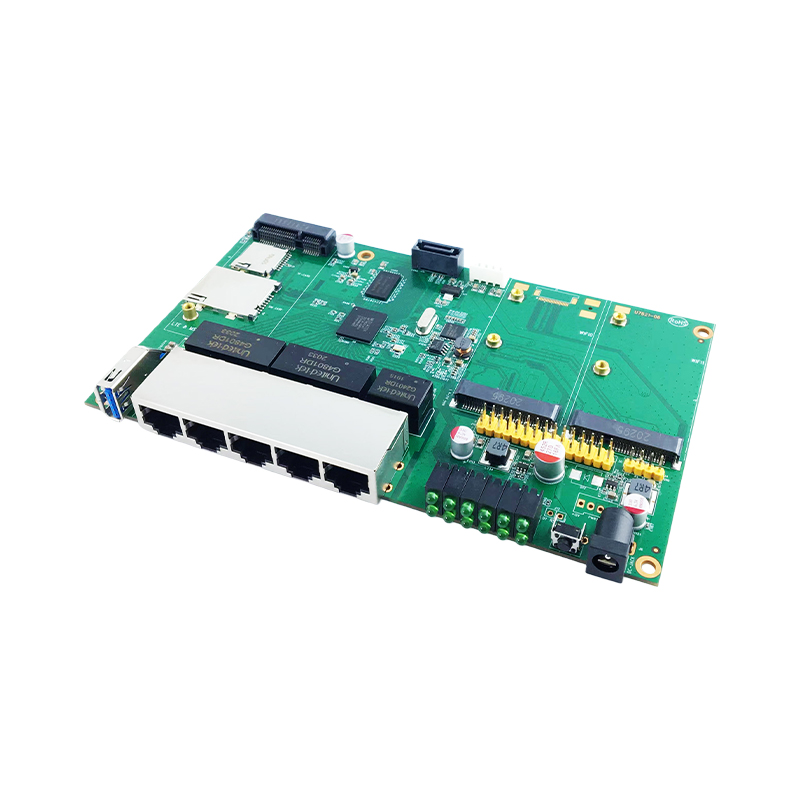

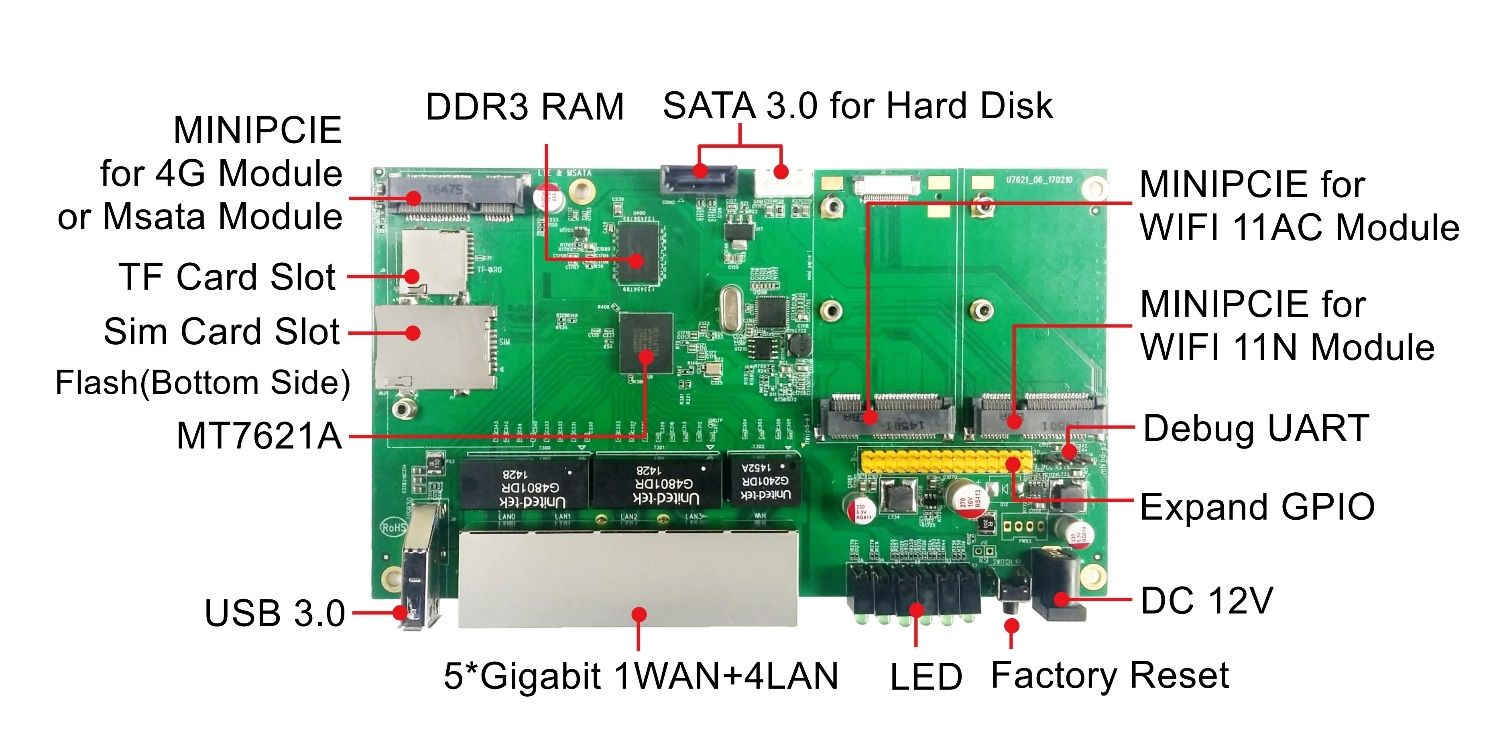

U7621-06 PCBA: bare board model
1. Customization fees generally cover the cost of product R&D modifications and sample engineering and material costs. Customization fees can typically be refunded to the customer as a deduction from the final payment once a certain quantity is accumulated in the order.
2. Minimum order quantities vary depending on the product. Our company is generally flexible with quantities and will try our best to meet customer needs. The smaller the order quantity, the higher the unit price.
3. Various aspects of the product, such as hardware and software functions, casing, packaging, and accessories, can be provided according to customer requirements. We provide free technical support for CE/FCC/ROHS/CCC/BSMI/KC certifications, etc. The customer is responsible for the certification costs themselves.

Consult

Features Technical Indicators Overall Dimension

1.Dual-core MIPS1004K(880MHz) with 2Gbps NAT speed
2.Hardware Crypto Engine -Deliver 400~500 Mbps IPSec throughput
3.Support latest Openwrt
4.Flexible different WFl module support
5.Aluminum Alloy with different color support

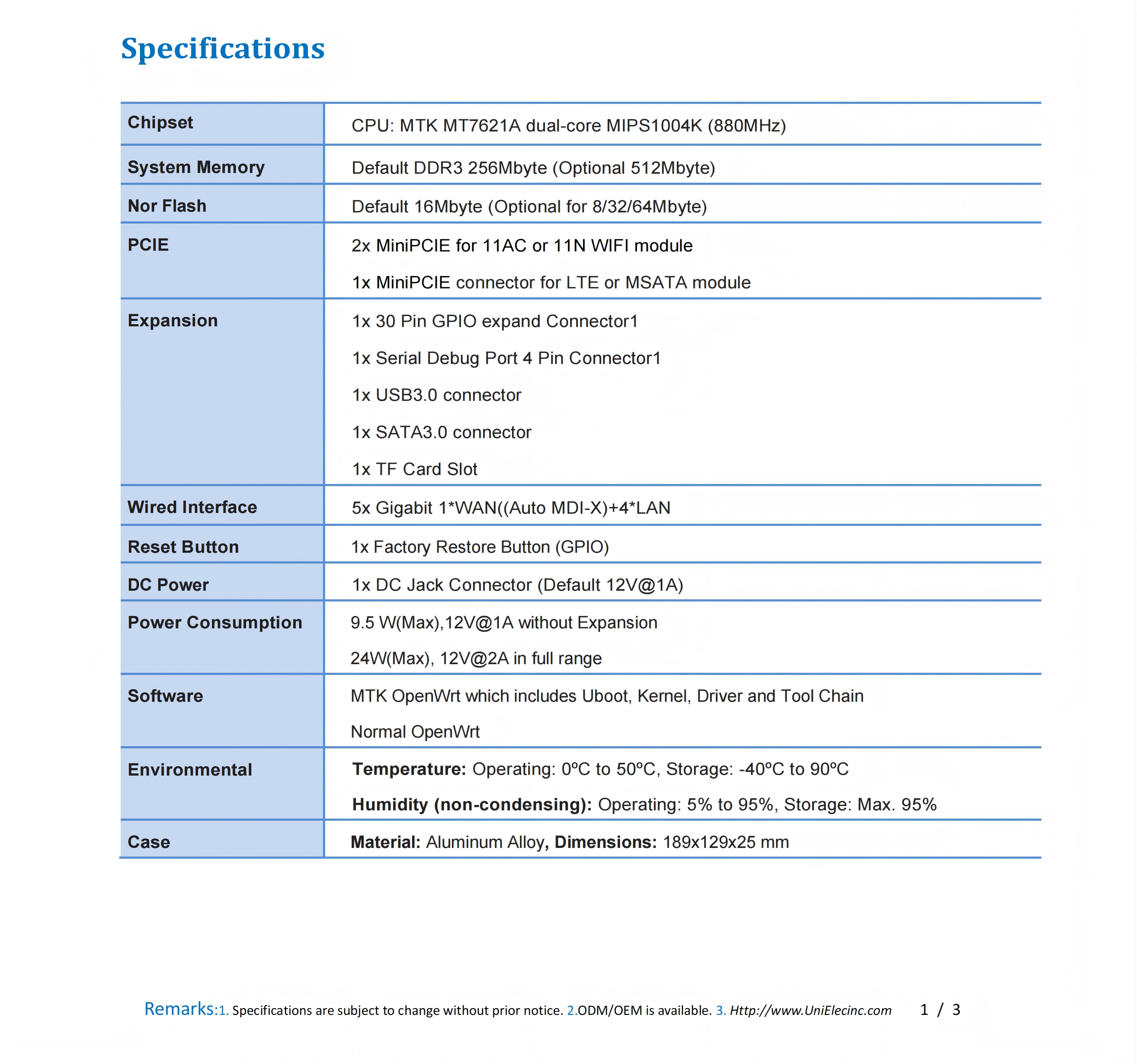

Specifications

Chipset	CPU: MTK MT7621A dual-core MIPS1004K (880MHz)
System Memory	Default DDR3 256Mbyte (Optional 512Mbyte)
Nor Flash	Default 16Mbyte (Optional for 8/32/64Mbyte)
PCIE	2x MiniPCIE for 11AC or 11N WIFI module 1x MiniPCIE connector for LTE or MSATA module
Expansion	1x 30 Pin GPIO expand Connector1 1x Serial Debug Port 4 Pin Connector1 1x USB3.0 connector 1x SATA3.0 connector 1x TF Card Slot
Wired Interface	5x Gigabit 1WAN(Auto MDI-X)+4LAN
Reset Button	1x Factory Restore Button (GPIO)
DC Power	1x DC Jack Connector (Default 12V@1A)
Power Consumption	9.5 W(Max),12V@1A without Expansion 24W(Max), 12V@2A in full range
Software	MTK OpenWrt which includes Uboot, Kernel, Driver and Tool Chain Normal OpenWrt
Environmental	Temperature: Operating: 0ºC to 50ºC, Storage: -40ºC to 90ºC Humidity (non-condensing): Operating: 5% to 95%, Storage: Max. 95%

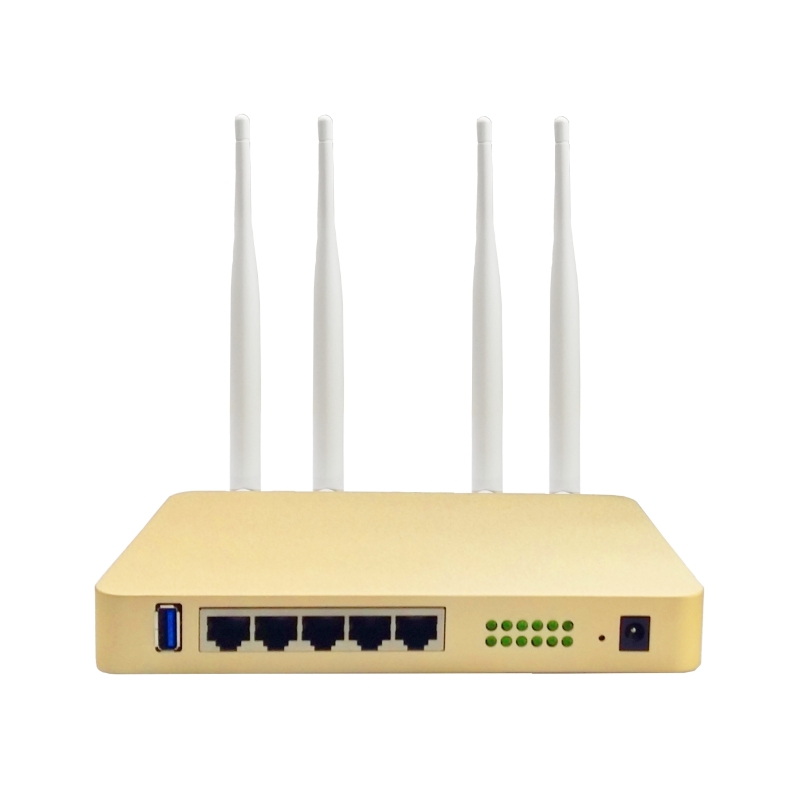

Case	Material: Aluminum Alloy, Dimensions: 189x129x25 mm

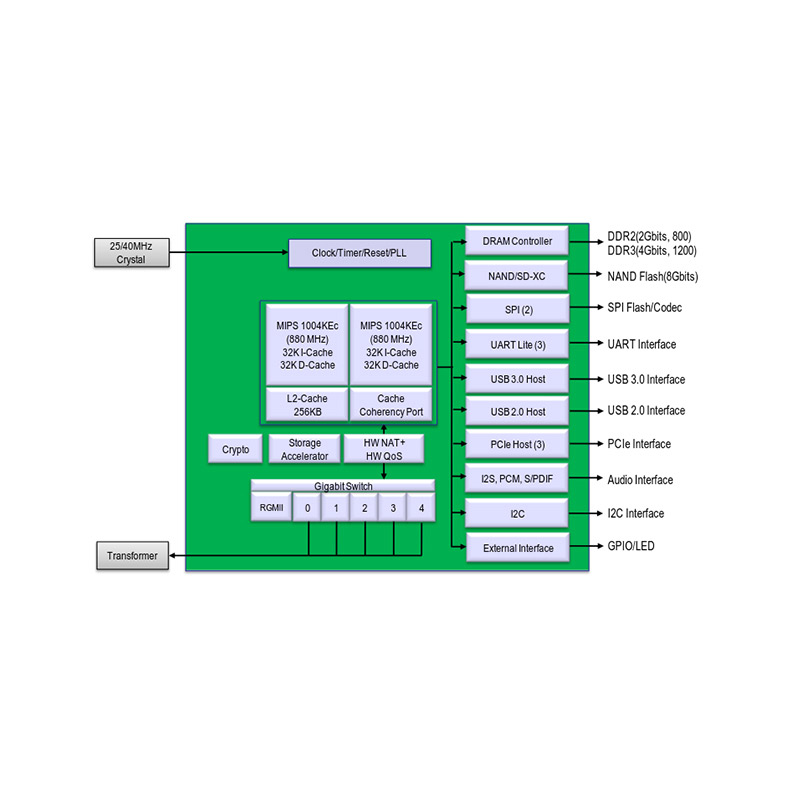

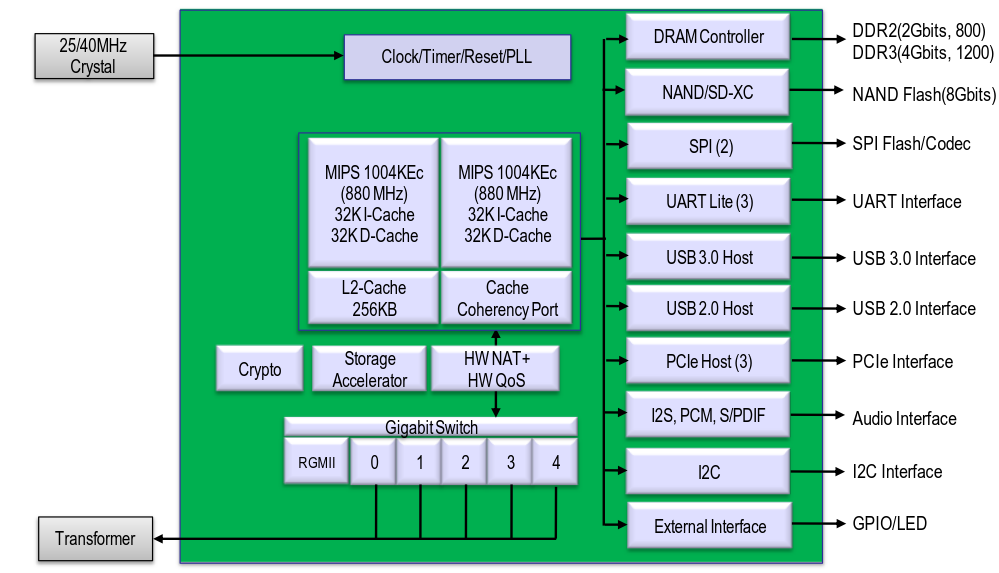

MT7621A Block Diagram

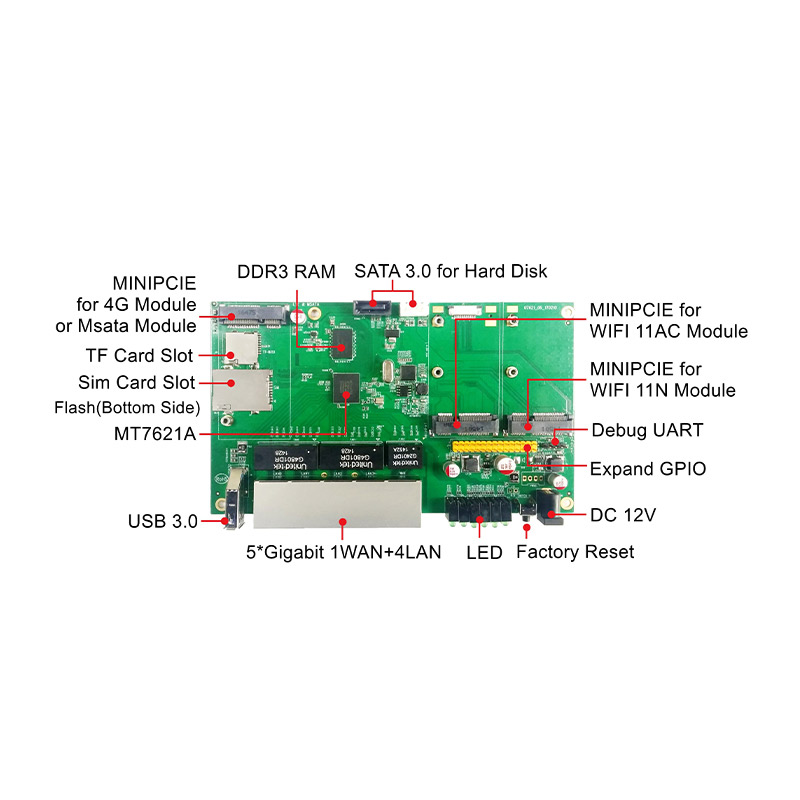

Board Block Diagram

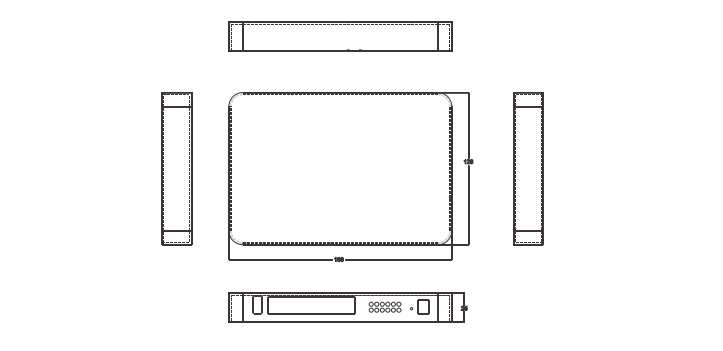

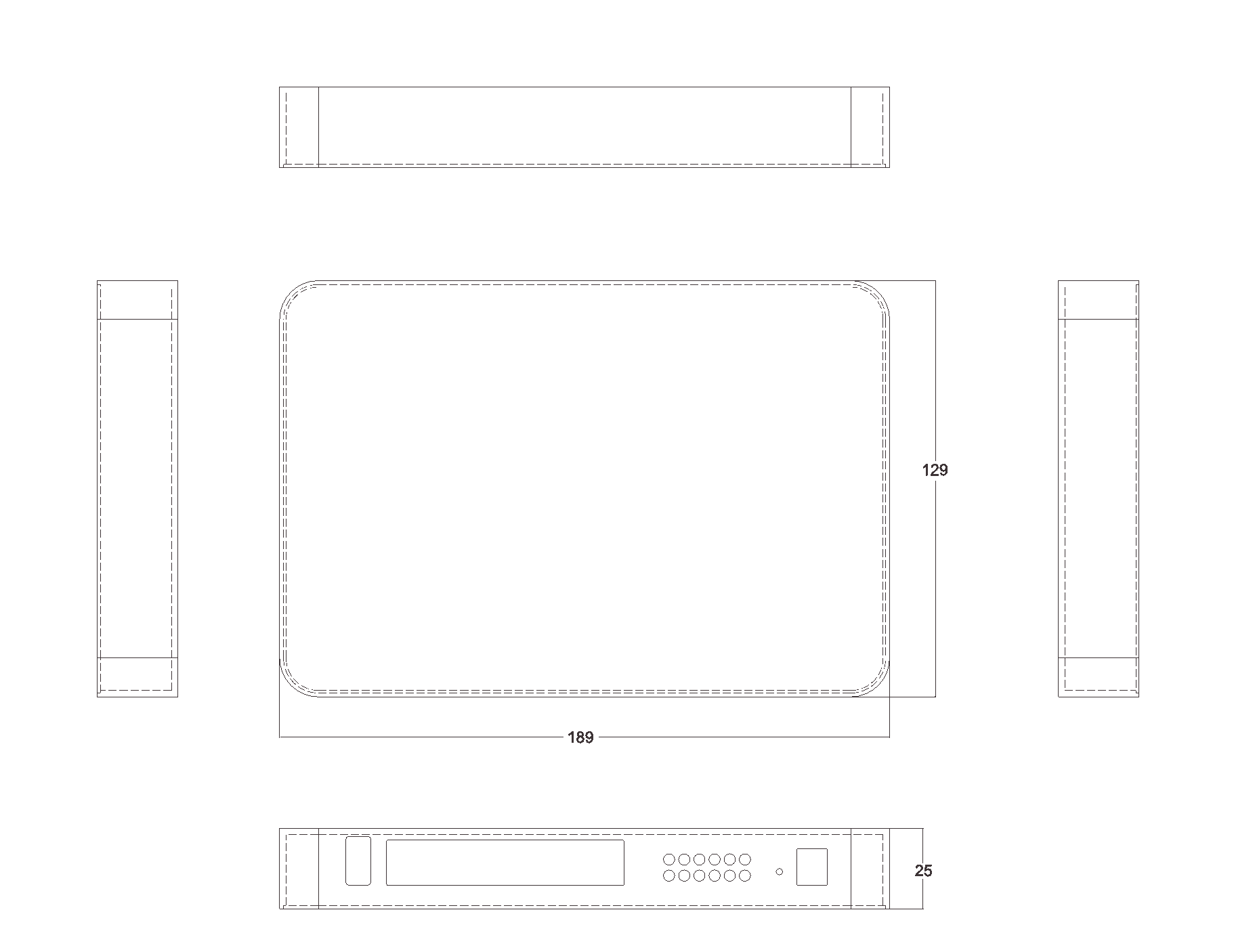

Dimensions

Customization Options

UniElec have engaged in providing global customers with professional ODM/OEM service of customized stable and cost-effective electronic products. We can customize total production for the customer including Chassis, Hardware, Software and Package as below customization options for this product. Contact us at sales@unielecinc.com for more detailed info.

Name	Customization Comments	UniElec Customization
Memory	Change to 512Mbyte DDR3	Supported
Nor Flash	Change to 8/32/64Mbyte	Supported
4G Module	Select the right PCIE 4G module for your application	Supported
WIFI Module	Select the right MiniPCIE WIFI module for your application	2T2R 11ac module [Half Card ]: U7612E-H1 2T2R 11n module Half Card]: U7603E-H1 4T4R 11ac Wave2 [Large Card]: U7615N-L3
Case	Select the different case material for your application	Supported

Ordering Information

Models	Comments
U7621-06	16Mbyte Nor Flash and 256Mbyte DDR3 RAM
