RK3588 Rockchip Dual-Band WiFi Embedded Development Board Host AI Box

RK3588 Rockchip Dual-Band WiFi Embedded Development Board Host AI Box

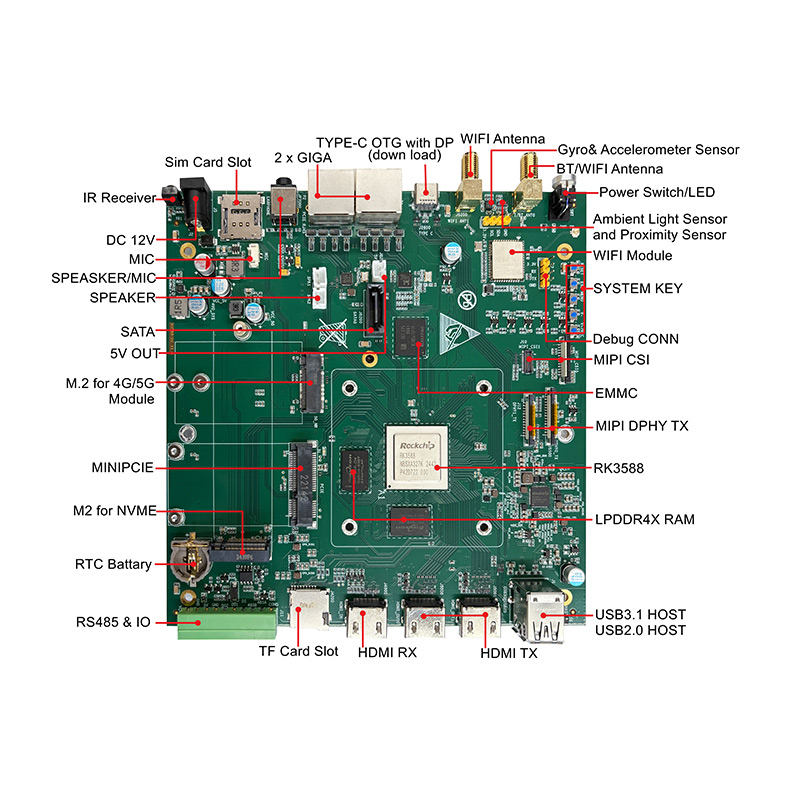

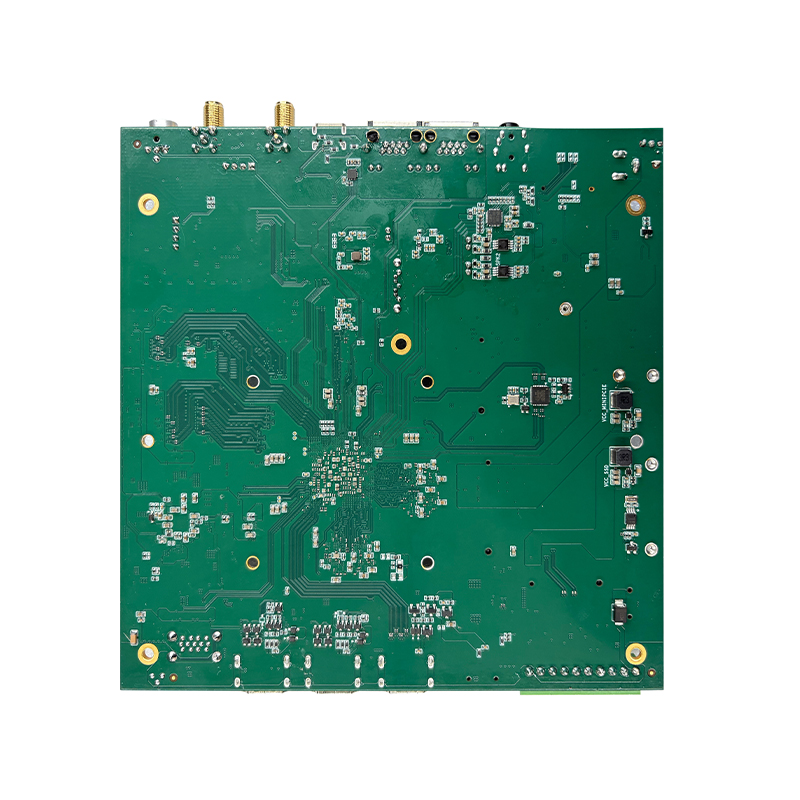

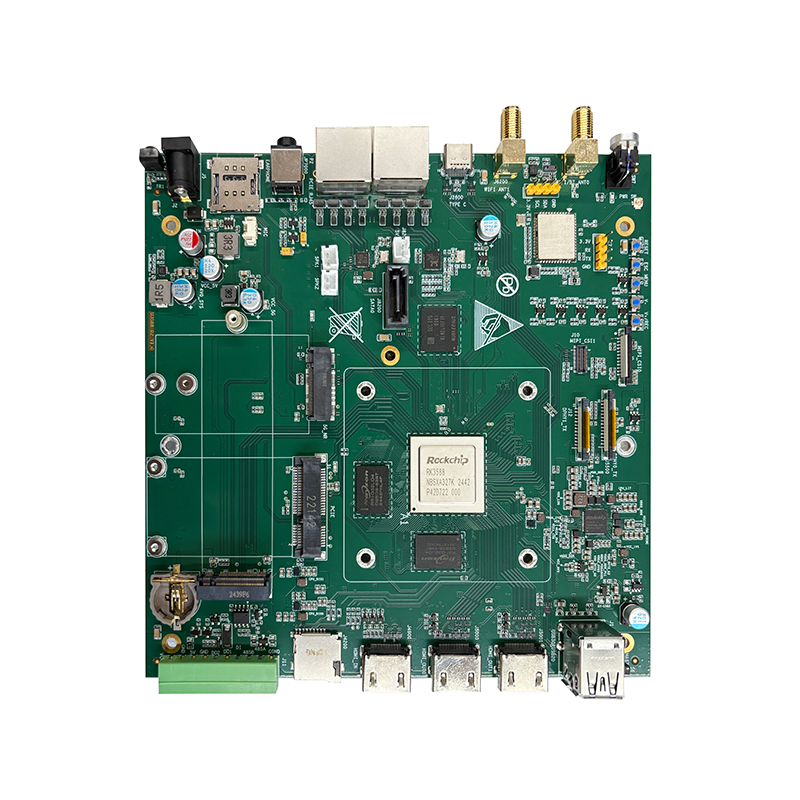

U3588-02 PCBA: bare board model

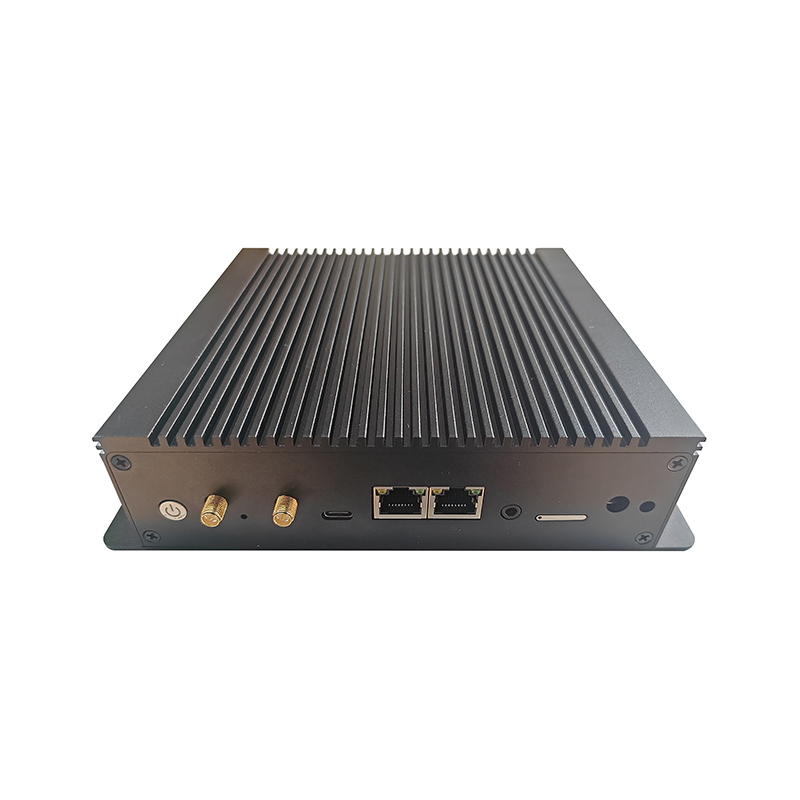

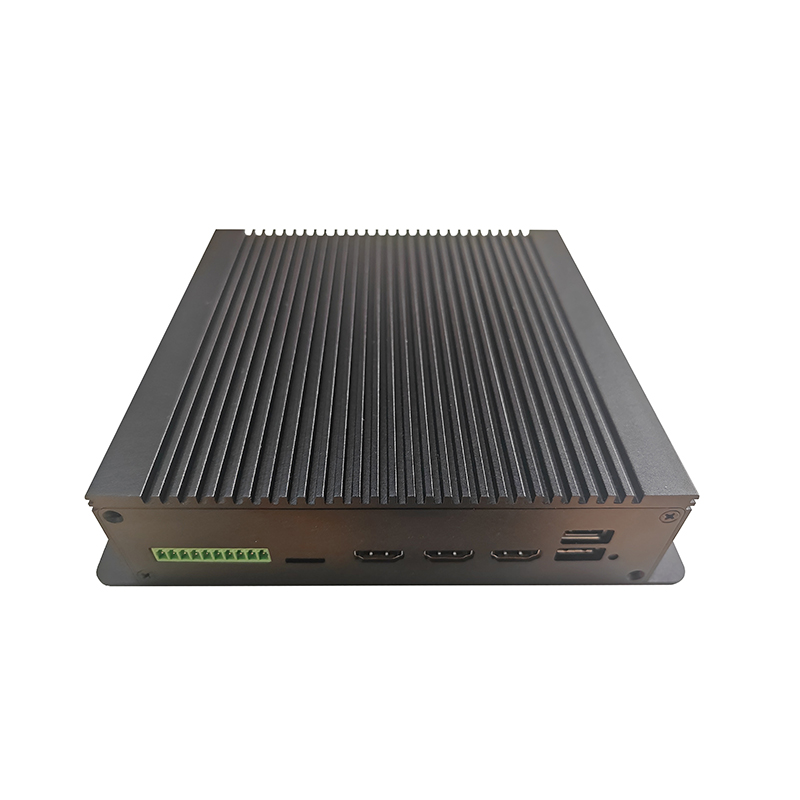

U3588-02: Complete device model (including casing, antenna, and power adapter).
1. Customization fees generally cover the cost of product R&D modifications and sample engineering and material costs. Customization fees can typically be refunded to the customer as a deduction from the final payment once a certain quantity is accumulated in the order.
2. Minimum order quantities vary depending on the product. Our company is generally flexible with quantities and will try our best to meet customer needs. The smaller the order quantity, the higher the unit price.
3. Various aspects of the product, such as hardware and software functions, casing, packaging, and accessories, can be provided according to customer requirements. We provide free technical support for CE/FCC/ROHS/CCC/BSMI/KC certifications, etc. The customer is responsible for the certification costs themselves.

Consult

Features Technical Indicators Overall Dimension

1.Quad-core ARM Cortex-A76 MPCore processor and quad-core ARM Cortex-A55 MPCore processor
2.EMMC for storage application, and optional NVME SSD big storage
3.Optional 5G /LTE application

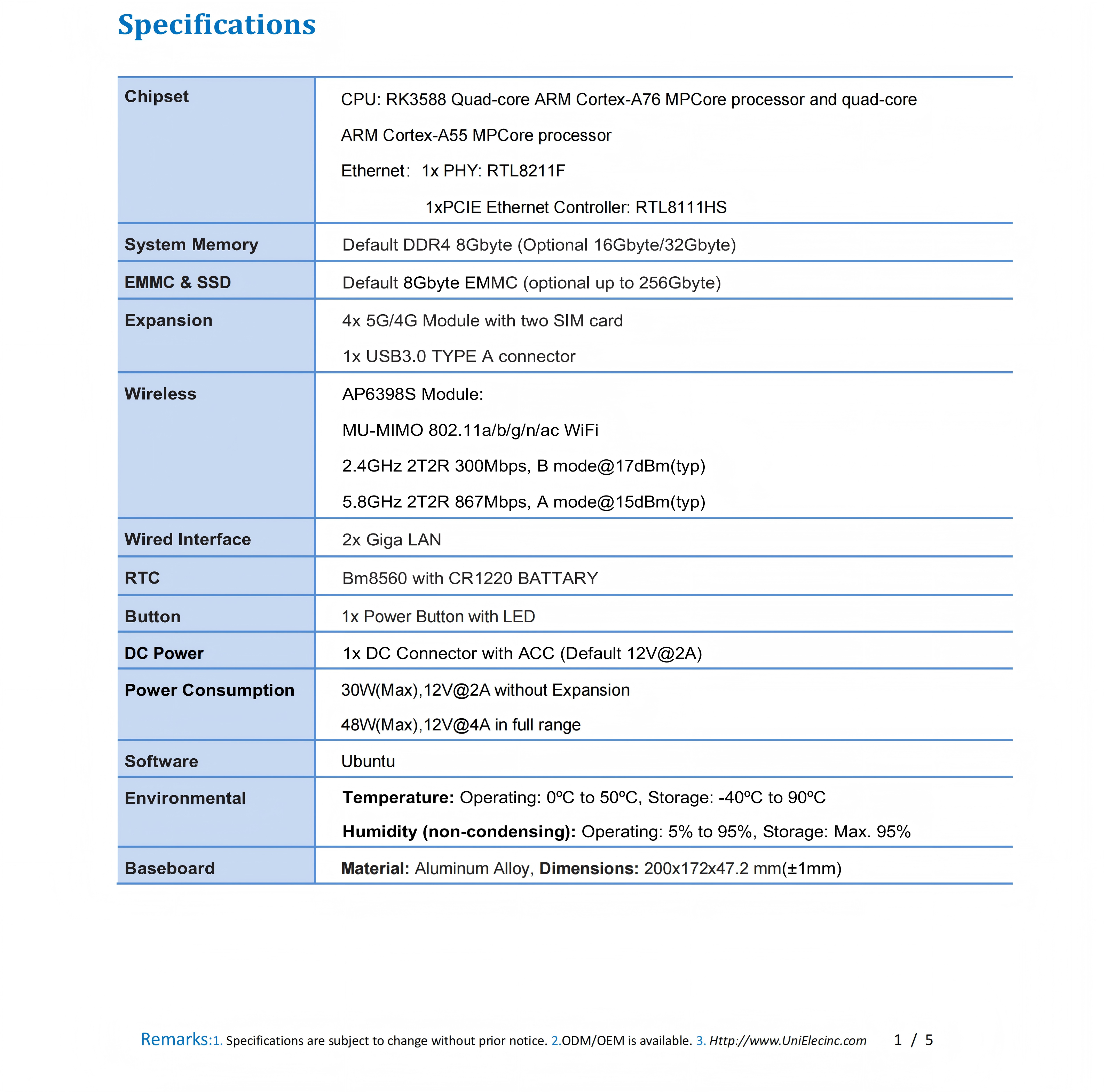

Specifications

Chipset	CPU: RK3588 Quad-core ARM Cortex-A76 MPCore processor and quad-core ARM Cortex-A55 MPCore processor Ethernet：1x PHY: RTL8211F 1x PCIE Ethernet Controller: RTL8111HS
System Memory	Default DDR4 8Gbyte (Optional 16Gbyte/32Gbyte)
EMMC	Default 8Gbyte EMMC (Optional up to 256Gbyte)
Expansion	1x 5G/4G Module with SIM card slot 1x USB3.1 TYPE-C OTG with DP connector 1x USB3.1 TYPE A connector 1x USB2.0 TYPE A connector 1x M2 slot for NVME 1x 1lane PCIE3.0 1x SATA 7P connector 1x 485 with IO connector
Video and Audio	1x HDMI2.1 TX 1x HDMI2.0 RX 2x 4lane MIPI CSI for camera 1x 4lane MIPI DPHY TX for screen
Audio	1x 3.5mm stereo headphone or line out and microphone connector 1x onboard microphone connector 2x 3W speaker connector
Sensor	1x Infrared receiver 1x Gyroscope & Accelerometer sensor 1x Ambient Light & Proximity sensor
Wireless	AP6398S Module: MU-MIMO 802.11a/b/g/n/ac WiFi 2.4GHz 2T2R 300Mbps, B mode@17dBm(typ) 5.8GHz 2T2R 867Mbps, A mode@15dBm(typ)
Wired Interface	2x Giga LAN
RTC	Bm8563 with CR1220 BATTERY
Button	1x Power Button with LED
DC Power	1x DC Connector with ACC (Default 12V@2A)
Power Consumption	30W(Max),12V@2A without Expansion 48W(Max),12V@4A in full range
Software	Ubuntu
Environmental	Temperature: Operating: 0ºC to 50ºC, Storage: -40ºC to 90ºC Humidity (non-condensing): Operating: 5% to 95%, Storage: Max. 95%
Case	Material: Aluminum Alloy, Dimensions: 200x172x47.2 mm(±1mm)

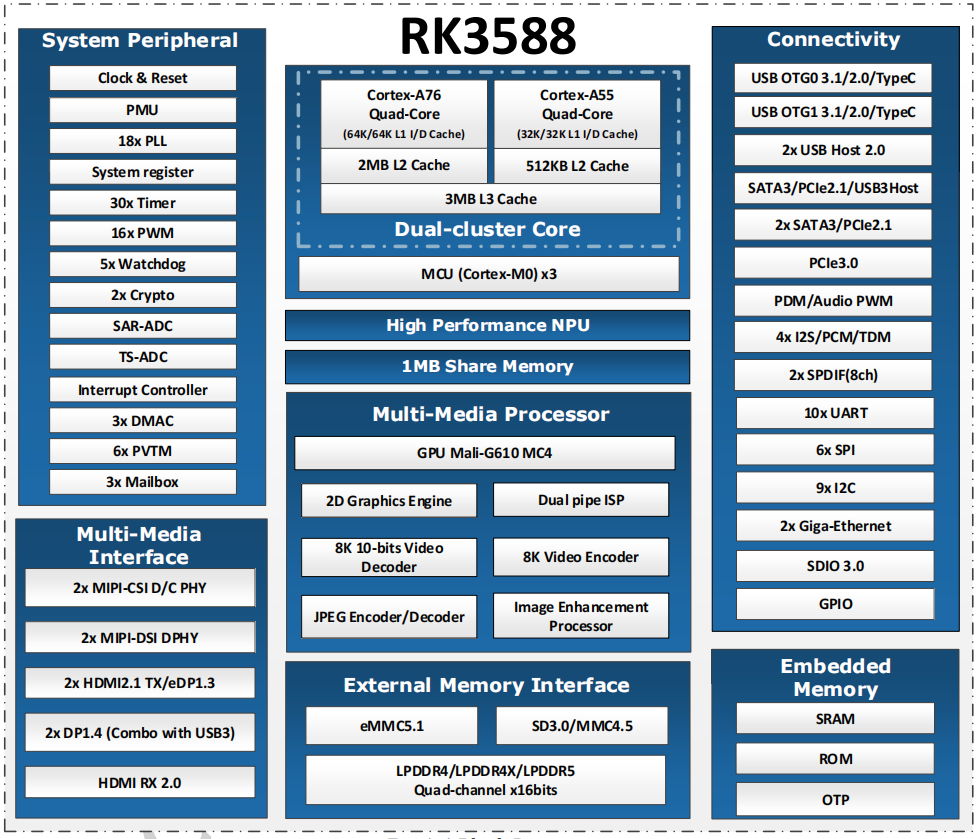

Rk3588 Block Diagram

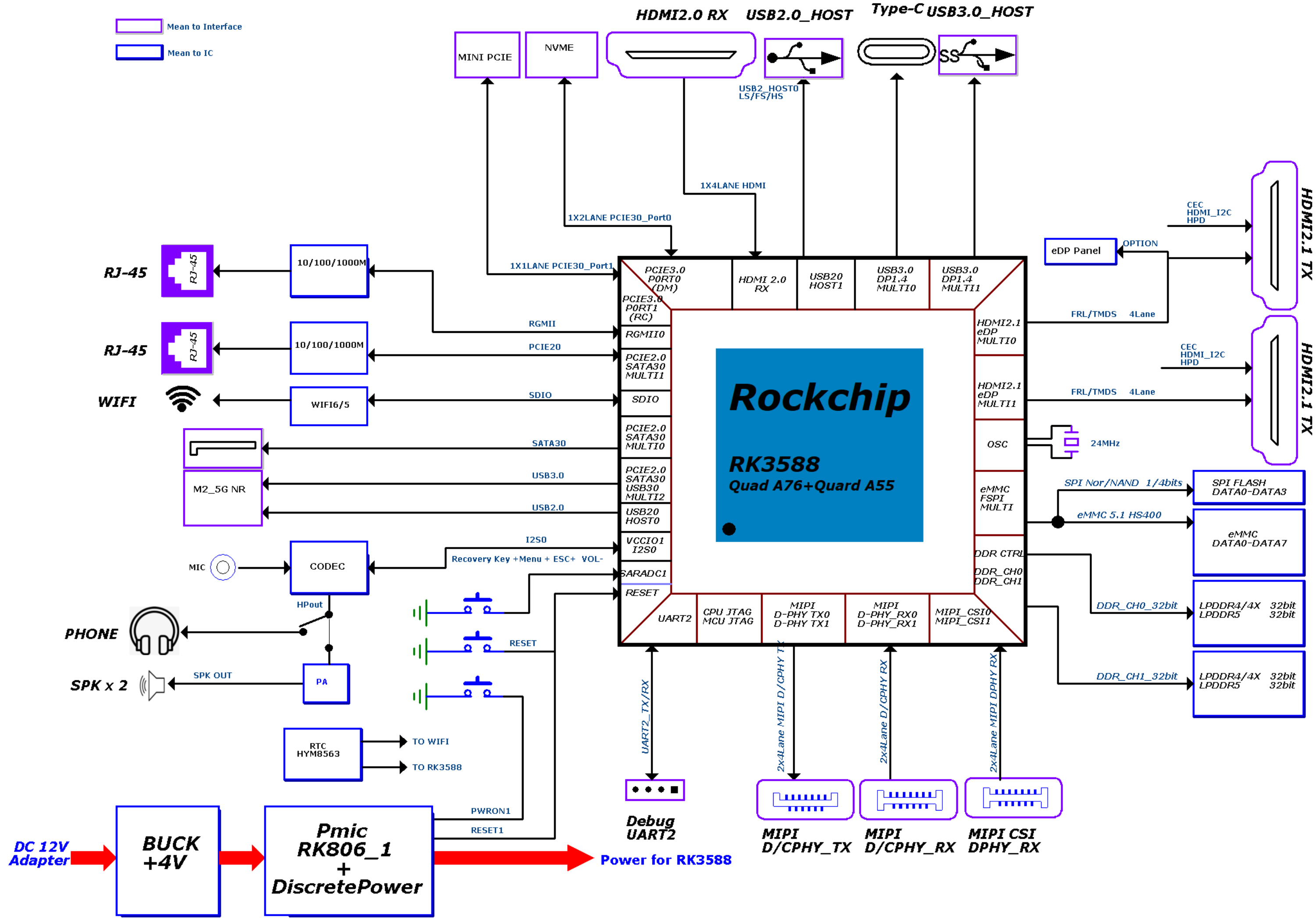

Schematics Block Diagram

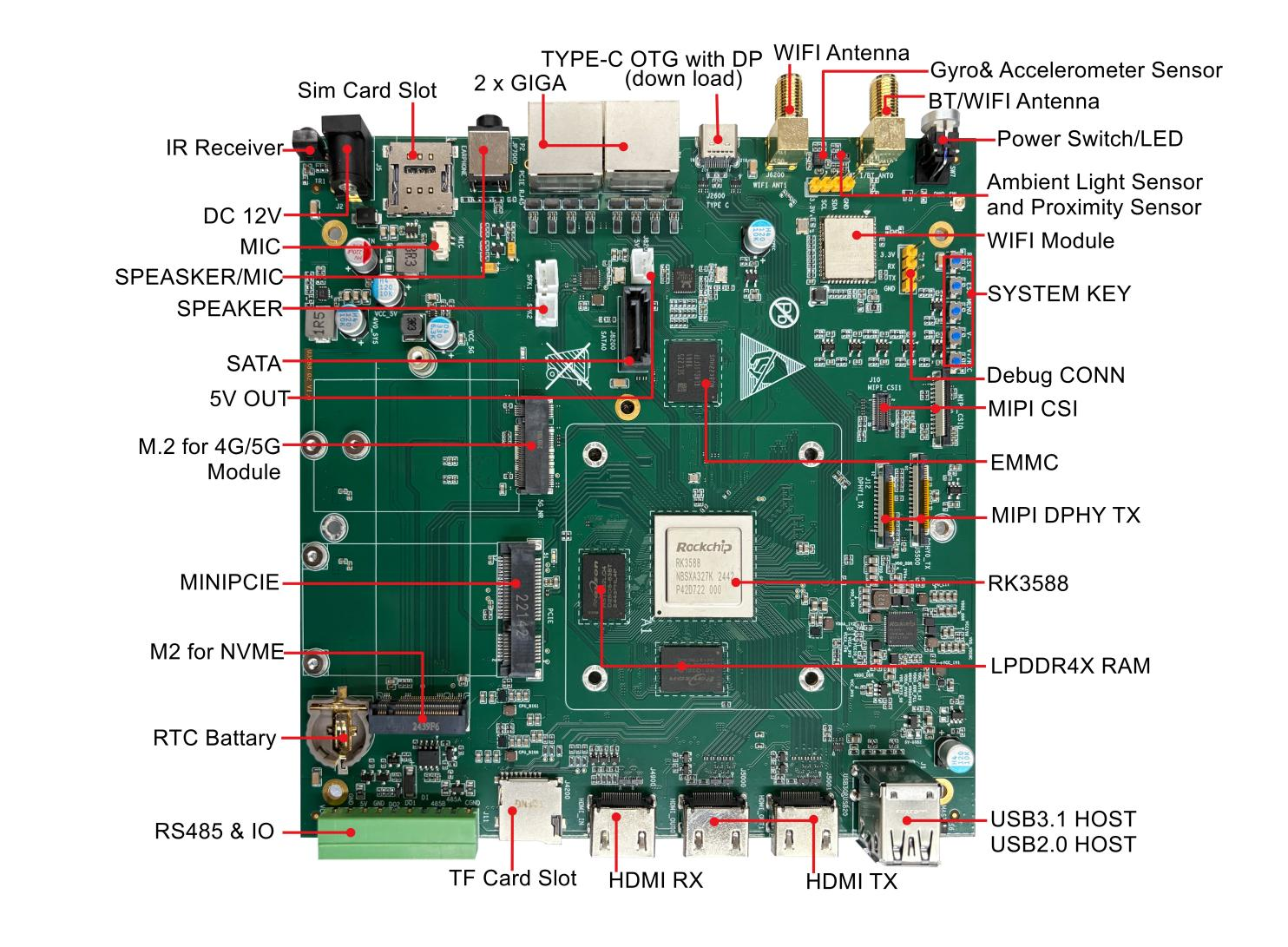

Board Block Diagram

Customization Options

UniElec have engaged in providing global customers with professional ODM/OEM service of customized stable and cost-effective electronic products. We can customize total production for the customer including Chassis, Hardware, Software and Package as below customization options for this product. Contact us at sales@unielecinc.com for more detailed info.

Name	Customization Comments	UniElec Customization
Memory	Change to 16Gbyte/32Gbyte DDR4	Supported
EMMC	Change up to 256Gbyte EMMC	Supported
5G/4G Module	Select the right M2 5G/4G module for your application	Supported
NVME SSD	Select NVME SSD for your application	Supported

Ordering Information

Models	Comments
U3588-02	8Gbyte EMMC and 8Gbyte DDR4 RAM
